SIMOTICS S‑1FK7 Servomotors

SIMOTICS S1FK7 servomotors support reliable motion control with flexible configurations for a wide range of automation tasks. Suitable for diverse applications.

SINAMICS S120 offers high performance, productivity and flexibility. Its modular design lets you quickly configure drive systems that fit almost any application.

With SINAMICS S220, experience a new system architecture today for tomorrow’s full potential – your advantage starts now. Powerful. Precise. Progressive

Compact, highly dynamic servomotors for industrial motion control. These motors deliver high power density and triple overload capability for demanding applications.

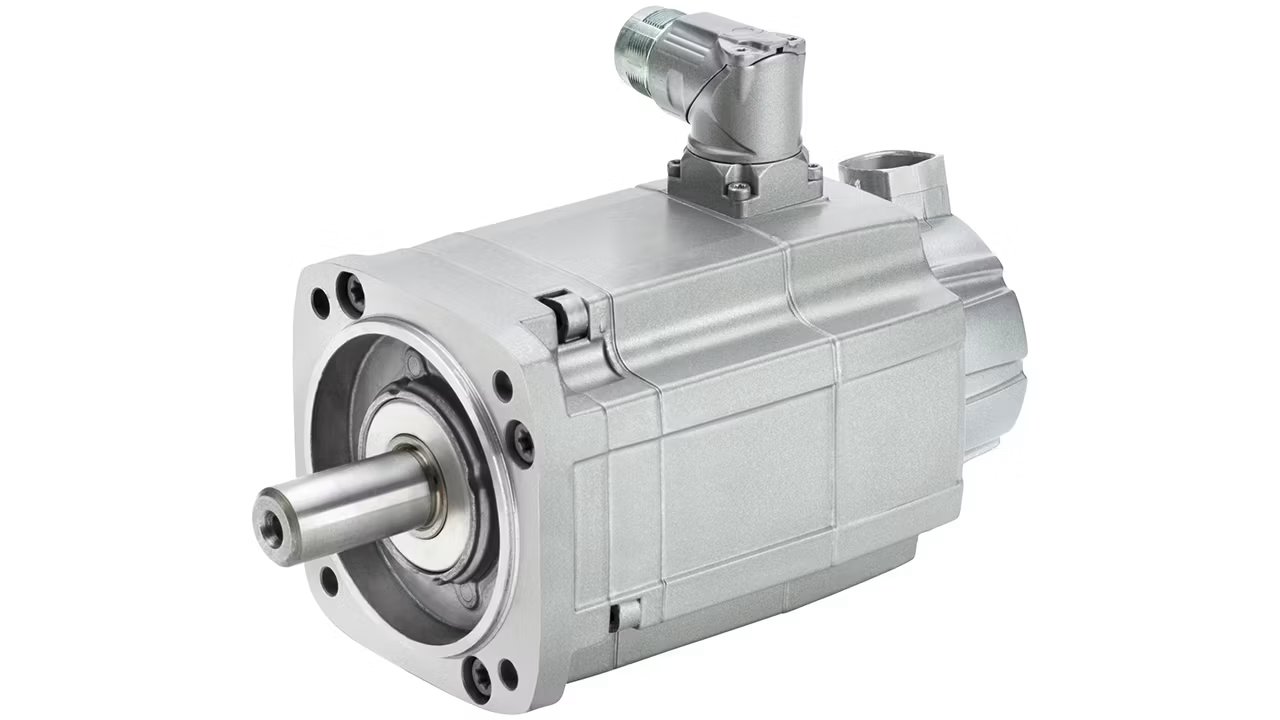

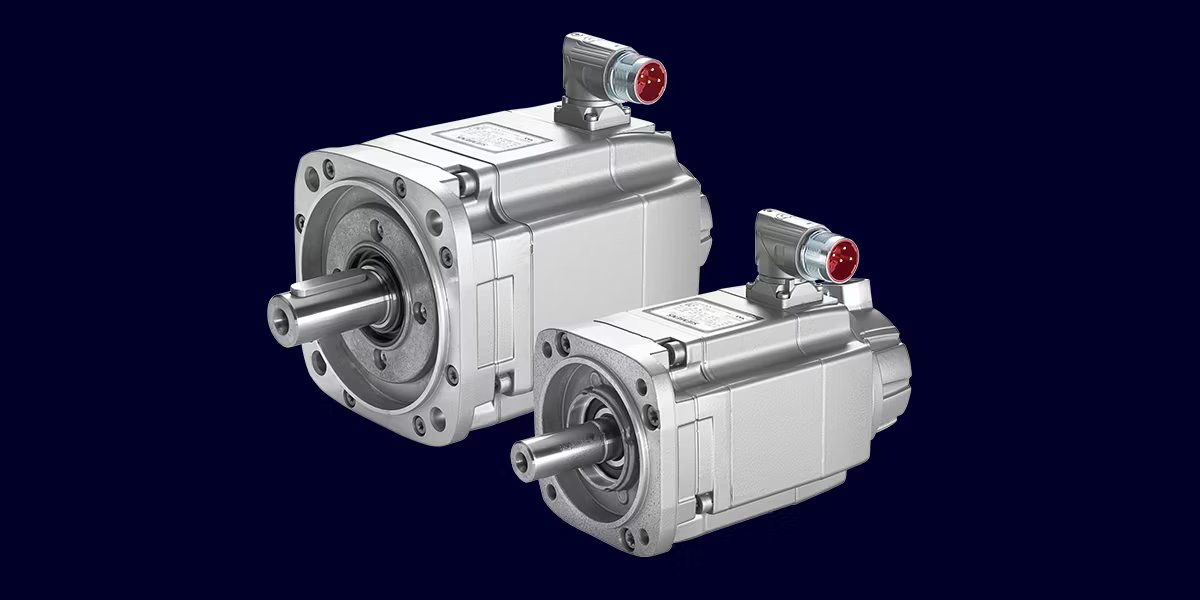

SIMOTICS S-1FK7 motors are permanent magnet synchronous motors available in compact, high dynamic and high inertia versions. The motors are characterized by superior overload capability, ruggedness and compactness. The connection via rotatable connectors and preassembled cables provides a flexible, fast and safe connection to the converter.

SIMOTICS S-1FK7 synchronous motors have a high degree of efficiency and triple overload capability. They are shock- and vibration-resistant due to a mechanically isolated encoder connection.

A rotatable connector with quick-release fastener and exchangeable encoder make assembly and service easier. The digital DRIVE-CLiQ interface with electronic rating plate optimizes connection to SINAMICS S120.

The motors are available with absolute encoder, incremental encoder or resolver options, as well as different gear types and backlash-free holding brakes. Cooling methods include natural cooling and forced ventilation

The S-1FK7 (CT) is a universal motor for wide range of applications. Its space-saving design has a very high power density and a large range of motors in shaft heights 20 to 100. Some types with short delivery times are available.

The S-1FK7 (HD) is a rugged servomotor built for highly dynamic applications with low load moment of inertia. It has a fast ramp-up time with a very high acceleration capability due to low rotor moment of inertia.

The HI design is suited for machine tools for feed axis applications that require superior resp. alternating load inertia. It features docile control behavior and reduced expenditure for controller optimization.

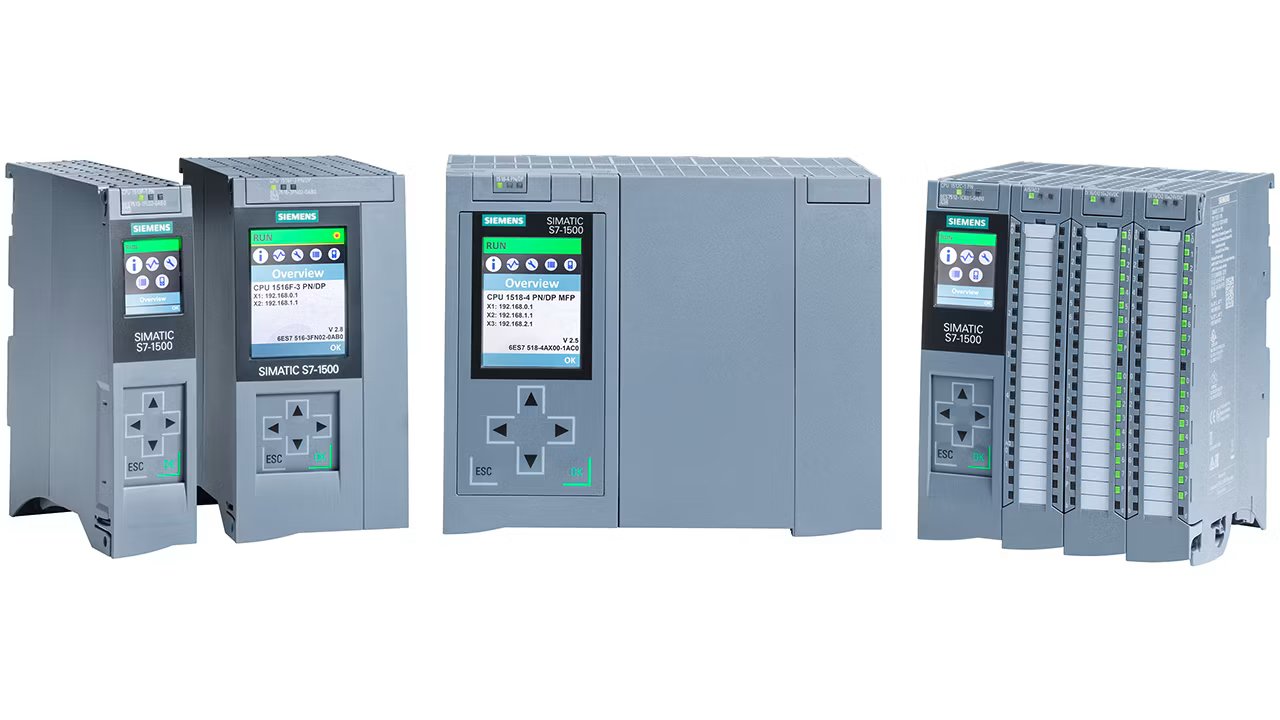

T&T has been relying on Siemens and SIMATIC motion control right from the start when realizing an IS machine for the first time. The prototype of the IS machine requires a high level of computing power as well as the experience to implement a reliable system in such an innovative and unique machine.

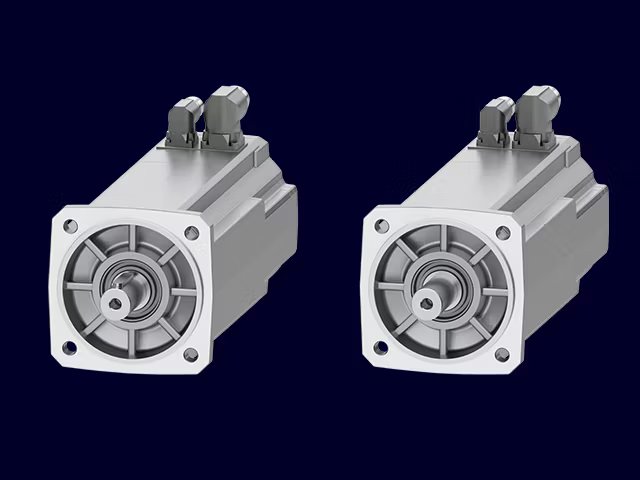

For new projects, Siemens recommends selecting the SIMOTICS S‑1FK2 or S‑1FT2 servo motor series, as they offer enhanced performance and capabilities.

The new generation provides improved performance, higher flexibility and broader application coverage compared to SIMOTICS S-1FK7.

Learn more about SIMOTICS S‑1FK2/S‑1FT2 on this page .
