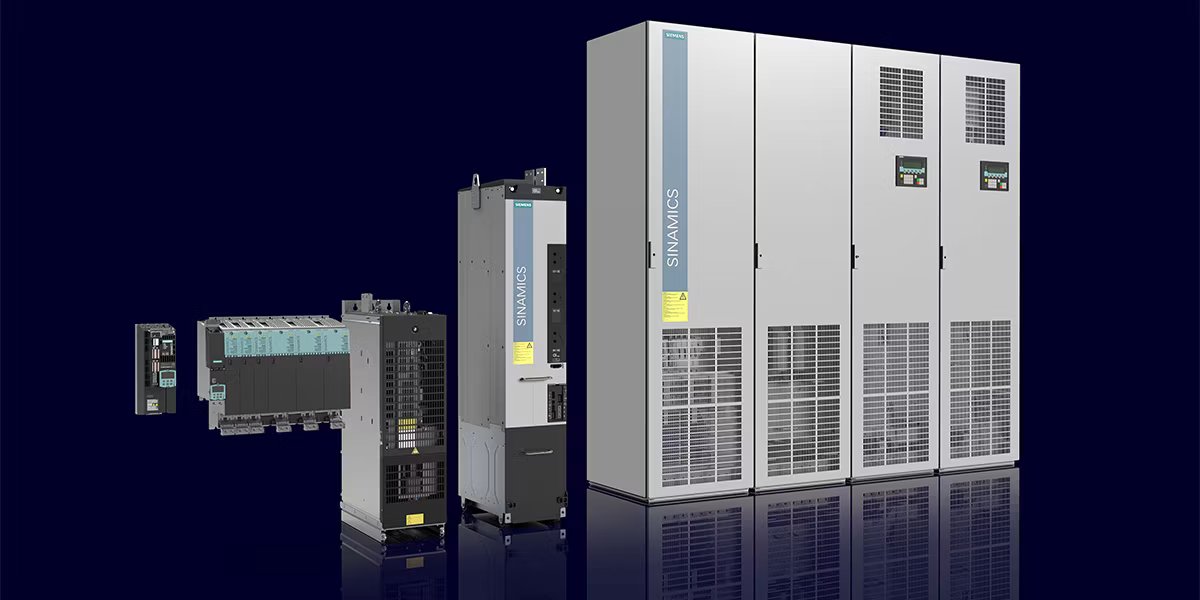

SINAMICS S120 Modular, High-Performance Drive System

SINAMICS S120 is a modular, high-performance drive system used for precise motion control in advanced industrial machinery.

SINAMICS S120 is a modular high-performance drive system that delivers precise, flexible motion control for advanced industrial machinery.

• Enhance efficiency: SINAMICS S120 provides clear diagnostics, easy updates and flexible configuration for nearly any motion control task.
• Reduce costs: Its seamless TIA engineering lowers lifecycle and commissioning costs while enabling smooth integration into existing systems.
• Adapt to any need: Users benefit from freely selectable vector or servo control and scalable performance tailored to diverse machine requirements.
• SiePortal | Product overview
• Catalog D21.4 | Motion control drives
• TIA Selection Tool | Product configuration
• Trial download | TIA Portal STEP 7
• Image database | Product photos and dimension drawings
• Download manager | CAx data
• Online support | All products
• Online support | Technical Forum
• Online support | Create new support request

Improve workflows with clear diagnostic messages in plain text. Update device functionality remotely from any network-connected PC to keep systems current and productive.

Reduce expenses using seamless TIA engineering without system discontinuities. Simplify parameterization and commissioning to accelerate setup and cut lifecycle costs.

Combine power and closed-loop control performance for maximum flexibility. Choose freely between vector and servo control to adapt to a wide range of industrial applications.

Access your SINAMICS S120 from any web-capable device. Perform diagnostics, execute maintenance or integrate custom web pages to simplify system monitoring and remote support.

Protect personnel and machines with built-in safety functions like STO, SBC, SS1, SS2, SOS, SLS, SDI, SSM, SLP, SP and SBT. Implement safety seamlessly in compliance with SIL 2 and PL d for reliable industrial operation.

Simulate all SINAMICS S120 device types with minimal parameterization. Import standardized Functional Mockup Units (FMUs) into your simulation tool to validate concepts and accelerate engineering.

Pfeifer & Langen enhanced compliance, emissions monitoring and operational efficiency with Siemens’ long-term support — benefits strengthened by Siemens technologies such as the high-performance SINAMICS S120 drive system.

The SINAMICS S120 is a modular high-performance drive system designed for demanding motion-control applications. It supports single and multi-axis setups and is used in industries such as packaging, plastics, textiles, printing, woodworking, cranes, machine tools, rolling mills and test benches.

Yes. SINAMICS S120 can be configured and commissioned in TIA Portal via SINAMICS Startdrive (from version V15 onward). Motion control functions (speed, positioning, synchronization) can be executed through TIA Portal using SIMATIC S71500 controllers.

SINAMICS S120 supports vector, servo and V/f control modes, providing precise speed, torque and position control. It enables highly dynamic multi-axis synchronization and suits both continuous and cyclic highspeed processes.
