Aggregate Gate

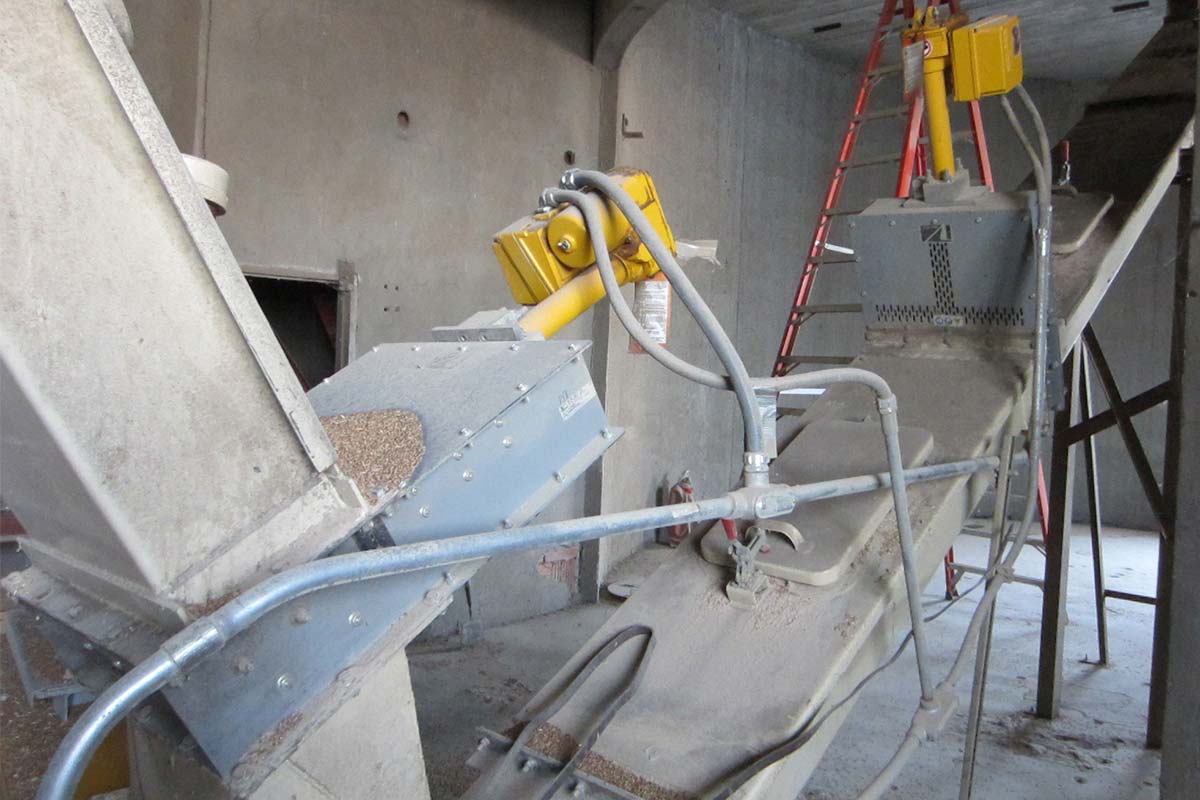

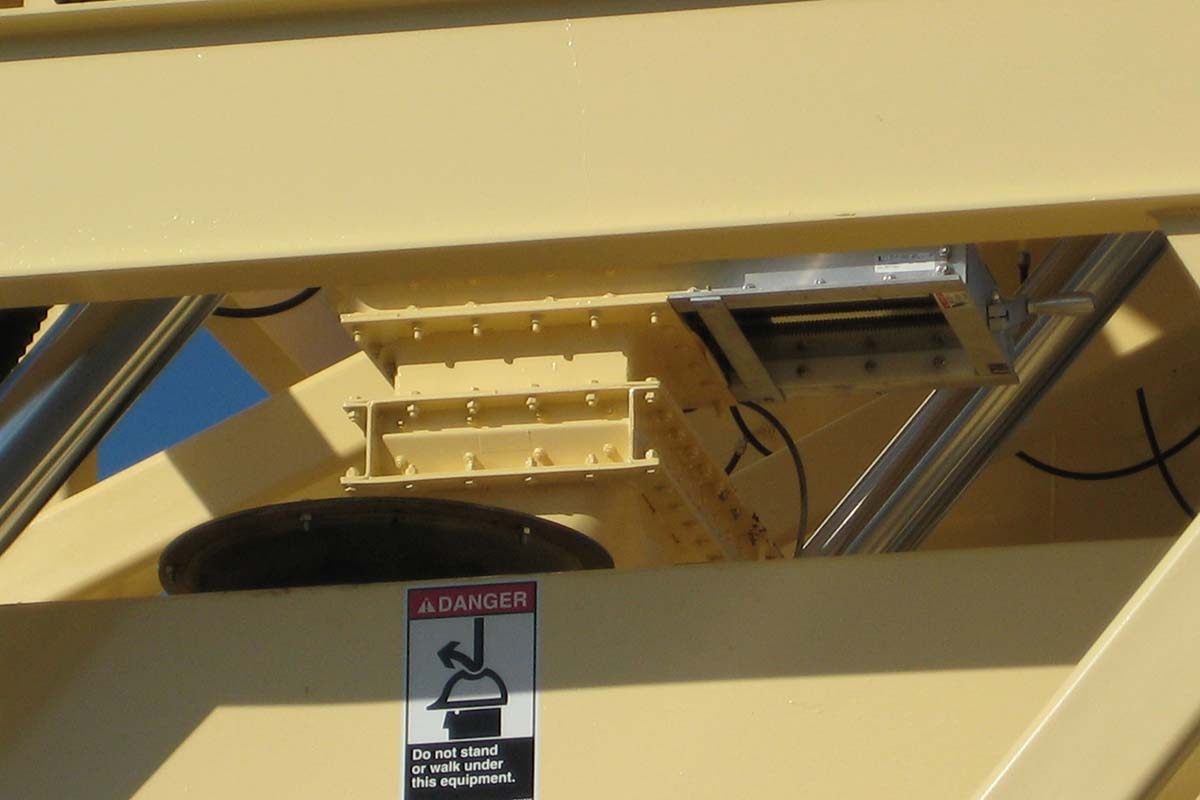

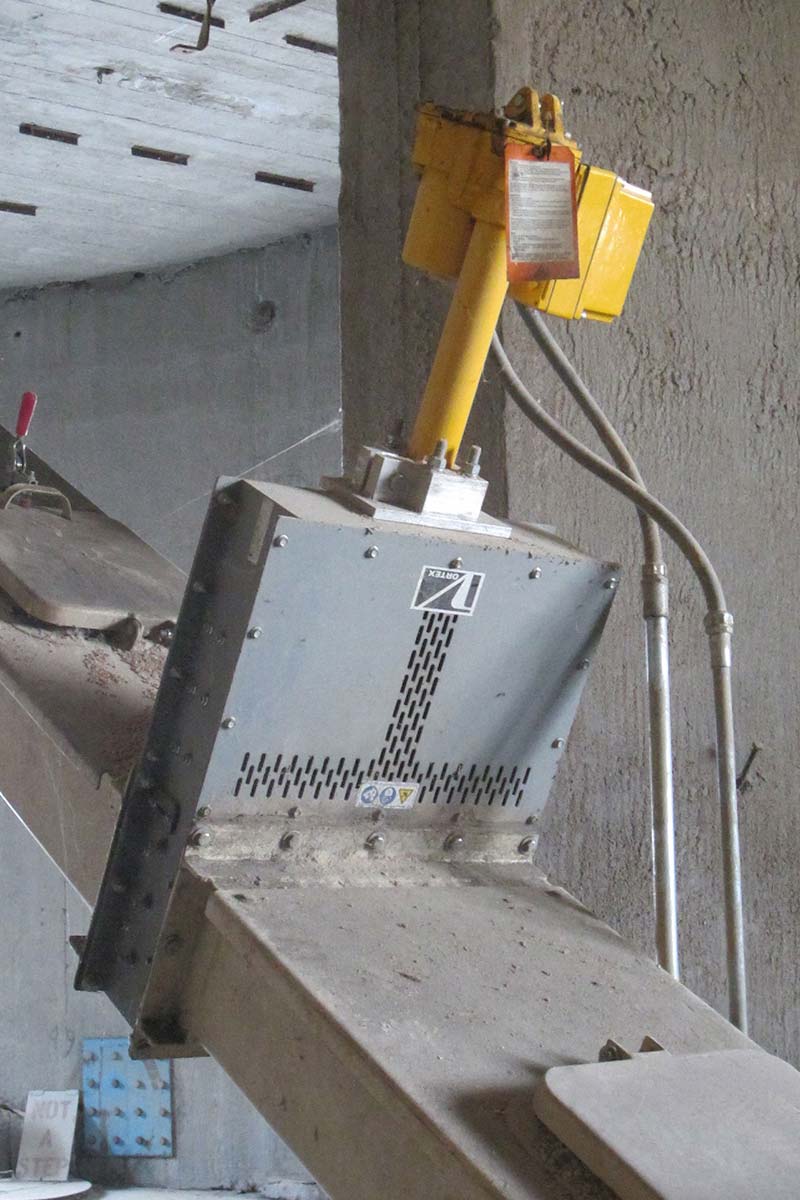

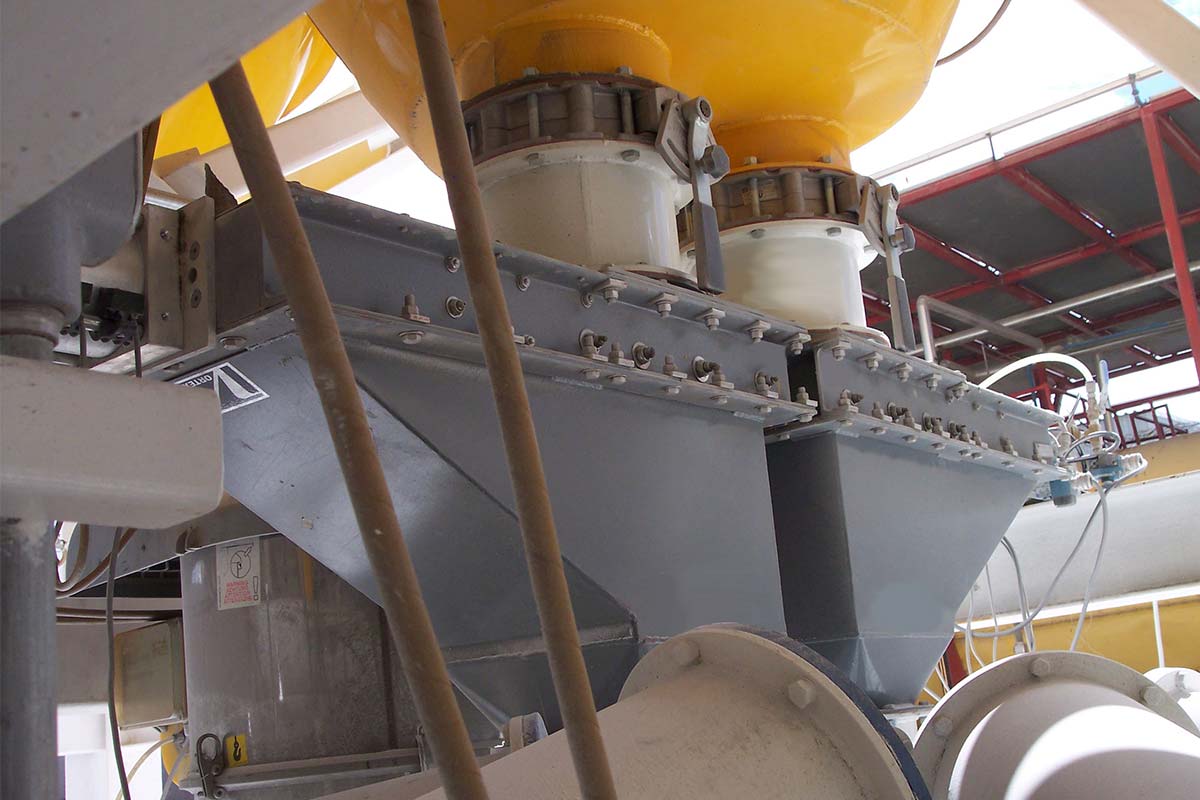

The Vortex® Aggregate Gate™ is designed to meet demanding applications handling material such as sand, gravel, whole grains, and coal.

• Seals are protected by a series of deflectors and retainers to reduce wear and extend service life
• Removable bonnet cover for easy inspection of valve body
• Displacement pocket prevents wedging and packing into an end seal
• Optional return pan redirects migrant materials in the bonnet area back into the material flow
• Constructed from specialized metals and polymers for application-specific durability and abrasion resistance
• Modifications allow the gate to be used in higher temperature applications up to 550°F | 290°C
• Optional side-mounted handwheel with rack & pinion gearing for quick, manual actuation
• Blade constructed from abrasion-resistant steel
• Replaceable abrasion-resistant liners for durability and prolonged service life

Seals are protected by a series of deflectors and retainers to reduce wear and extend service life

Removable bonnet cover for easy inspection of valve body

Displacement pocket prevents wedging and packing into an end seal

Optional return pan redirects migrant materials in the bonnet area back into the material flow

Constructed from specialized metals and polymers for application-specific durability and abrasion resistance

Modifications allow the gate to be used in higher temperature applications up to 550°F | 290°C

Optional side-mounted handwheel with rack & pinion gearing for quick, manual actuation

Blade constructed from abrasion-resistant steel

Replaceable abrasion-resistant liners for durability and prolonged service life

Heavy-duty and/or abrasive dry bulk solid materials with large particle sizes, such as minerals, coal and aggregates

Available in square or rectangular sizes. Round transition options are available

Standard flange Custom flanges are available

180°F | 80°C for standard gate, with modifications that allow up to 550°F | 290°C

Carbon steel, 304 stainless steel, 235 BHN abrasion-resistant steel, SAE 660 bronze

Belted rubber, chute rubber, bronze

Hardened steel, 304 stainless steel & bronze, 25%glass-filled PTFE, nylon, bronze

Double-acting air cylinder, hand wheel, chain wheel, electric actuator, hydraulic actuation

Magnetic reed, proximity or mechanical limit switches

ATEX Zone 20 (internal), ATEX Zone 21 (external), FDA

Blade and frame are made of 304 stainless steel. Rollers are 440 stainless steel and roller stud bolts are 304 or 18-8 stainless.

Modifications are made allowing 250°F (121°C) continuous to 300°F (149°C) intermittent service.

Modifications are made allowing 400°F (204°C) continuous to 450°F (232°C) intermittent service.

Slide blade is made of AR plate for handling more abrasive materials.

The dust seal will help to eliminate or reduce dusting to atmosphere. An example of an application the Enhanced Bonnet Seal option would be good for would be handling rocks with dust present. *Additional modifications available based on application.

Vortex Aggregate Gate vs. Alternatives
