Titan Slide Gate

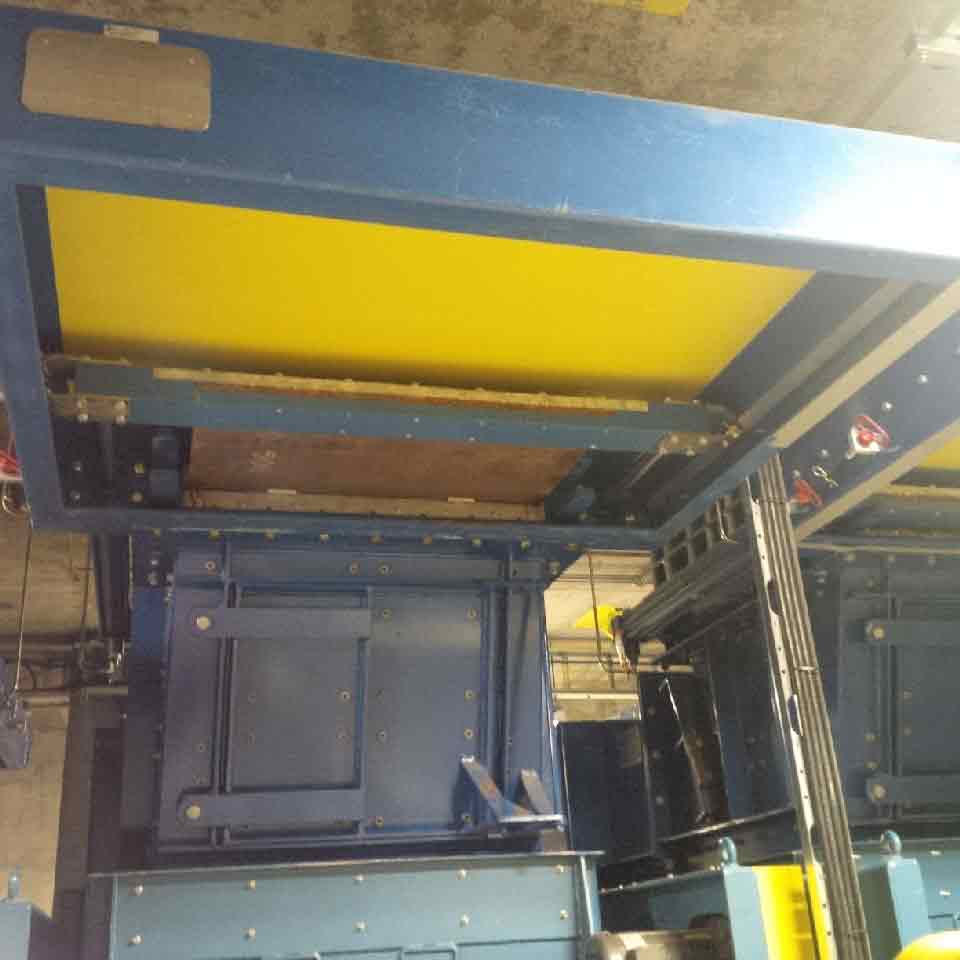

The Vortex® Titan Slide Gate™ is designed to meet the most demanding applications when handling heavy-duty abrasive materials such as sand, gravel, coal, and whole grains. The TSG Gate handles dry material in gravity flow applications where positive material shut-off and dust tight sealing is required.

• Live loaded, wear compensating hard polymer bonnet and side seals
• Displacement pocket prevents wedging and packing into an end seal. For fine materials, standard end seal is available.
• Seals are protected by a series of deflectors and wear liners to reduce wear and extend service life
• Cam-adjustable rollers for in-line maintenance
• Optional return pan to redirectmigrant materials in the gate’s bonnet area back into the material flow
• Constructed from specialized metals and polymers for application-specific durability and abrasion resistance
• No pinch points or exposed moving parts for safety
• No internal cavities to prevent wedging, lodging, and spoilage
• Narrow profile for limited space applications

Live loaded, wear compensating hard polymer bonnet and side seals

Displacement pocket prevents wedging and packing into an end seal. For fine materials, standard end seal is available.

Seals are protected by a series of deflectors and wear liners to reduce wear and extend service life

Cam-adjustable rollers for in-line maintenance

Optional return pan to redirectmigrant materials in the gate’s bonnet area back into the material flow

Constructed from specialized metals and polymers for application-specific durability and abrasion resistance

No pinch points or exposed moving parts for safety

No internal cavities to prevent wedging, lodging, and spoilage

Narrow profile for limited space applications

Heavy-duty and/or abrasive powders, pellets and granules. Modifications available for handling abrasive, fine materials.

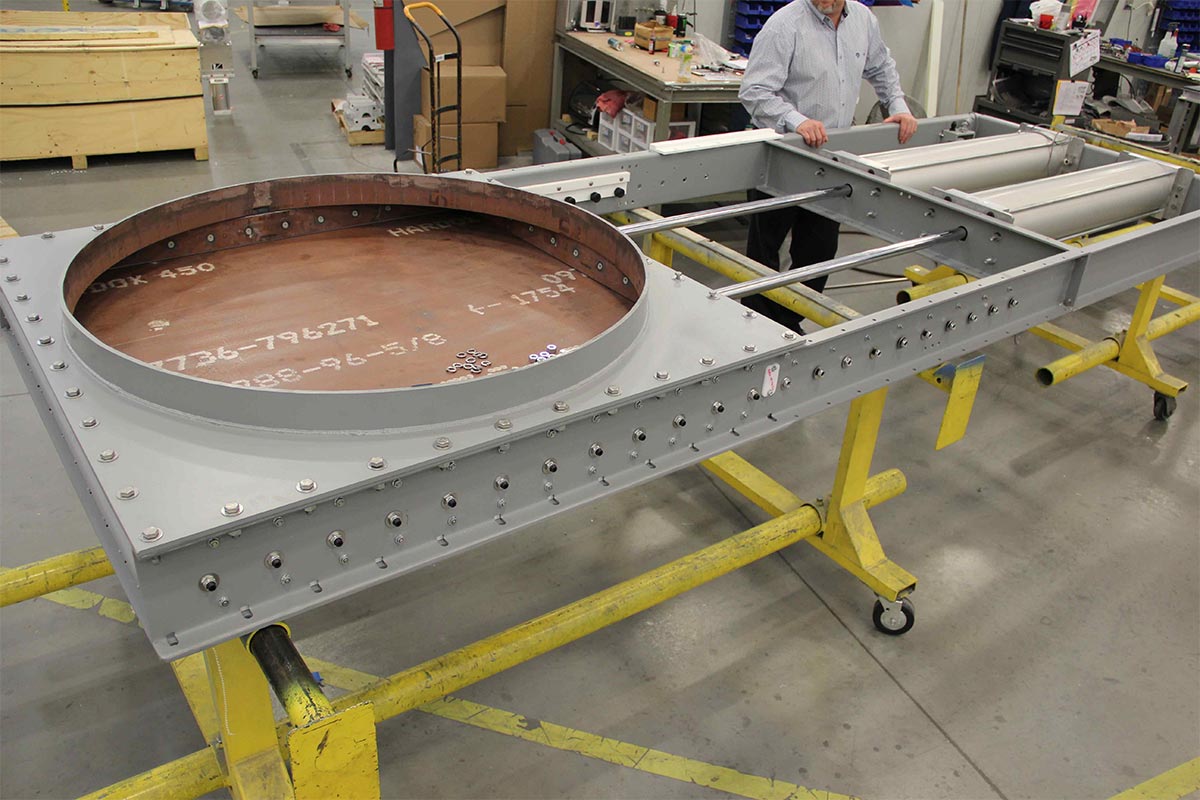

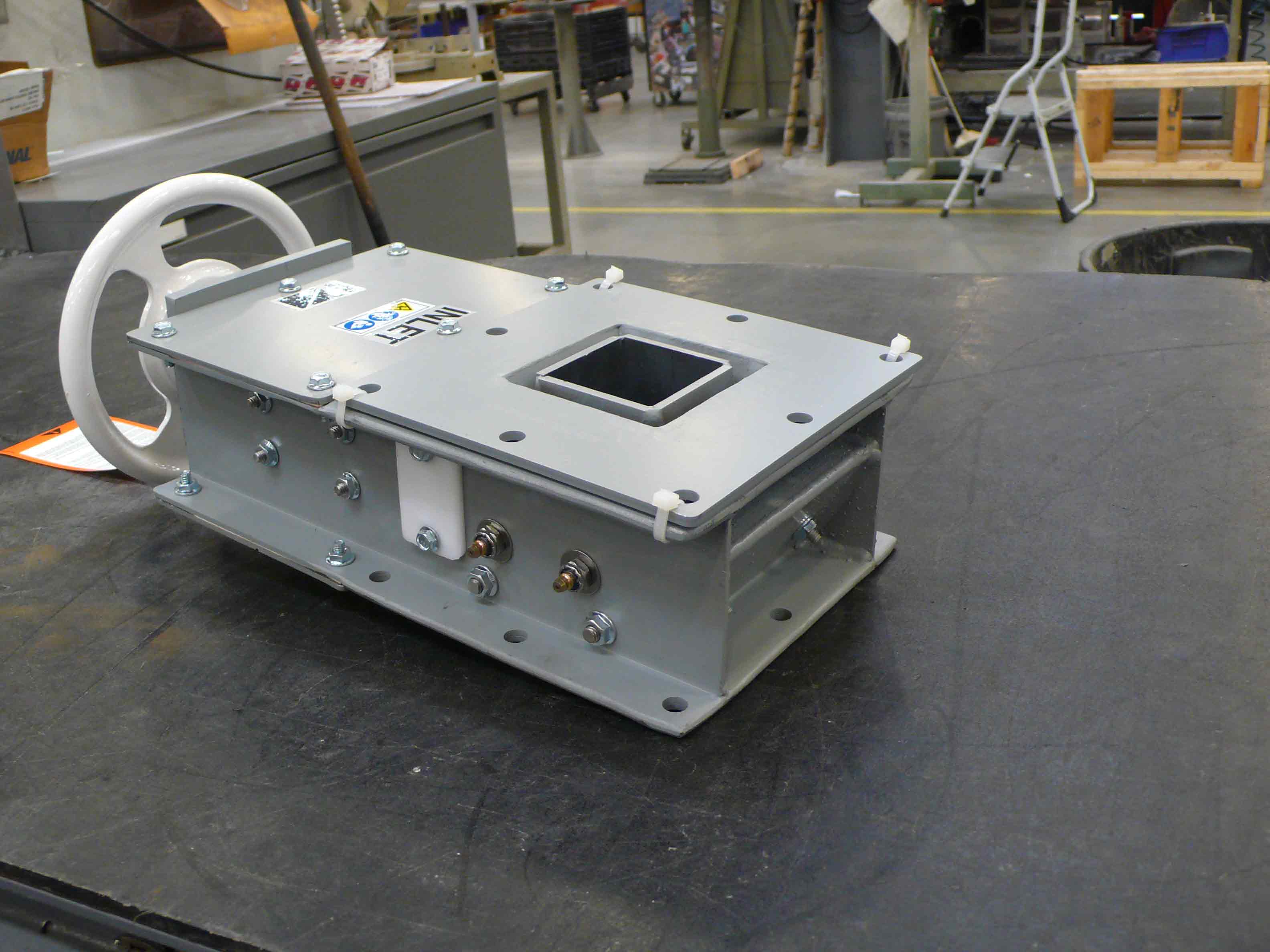

Available in square or rectangular sizes. Round transition options are available

Standard flange Custom flanges are available

250°F | 120°C for standard gate, with modifications that allow up to 400°F | 205°C

400 BHN abrasion-resistant steel, carbon steel, 304 stainless steel

Hardened steel, 304 stainless steel, bronze bushings

Proximity switches, magnetic reed switches and/or clear bonnet cover for visual indication

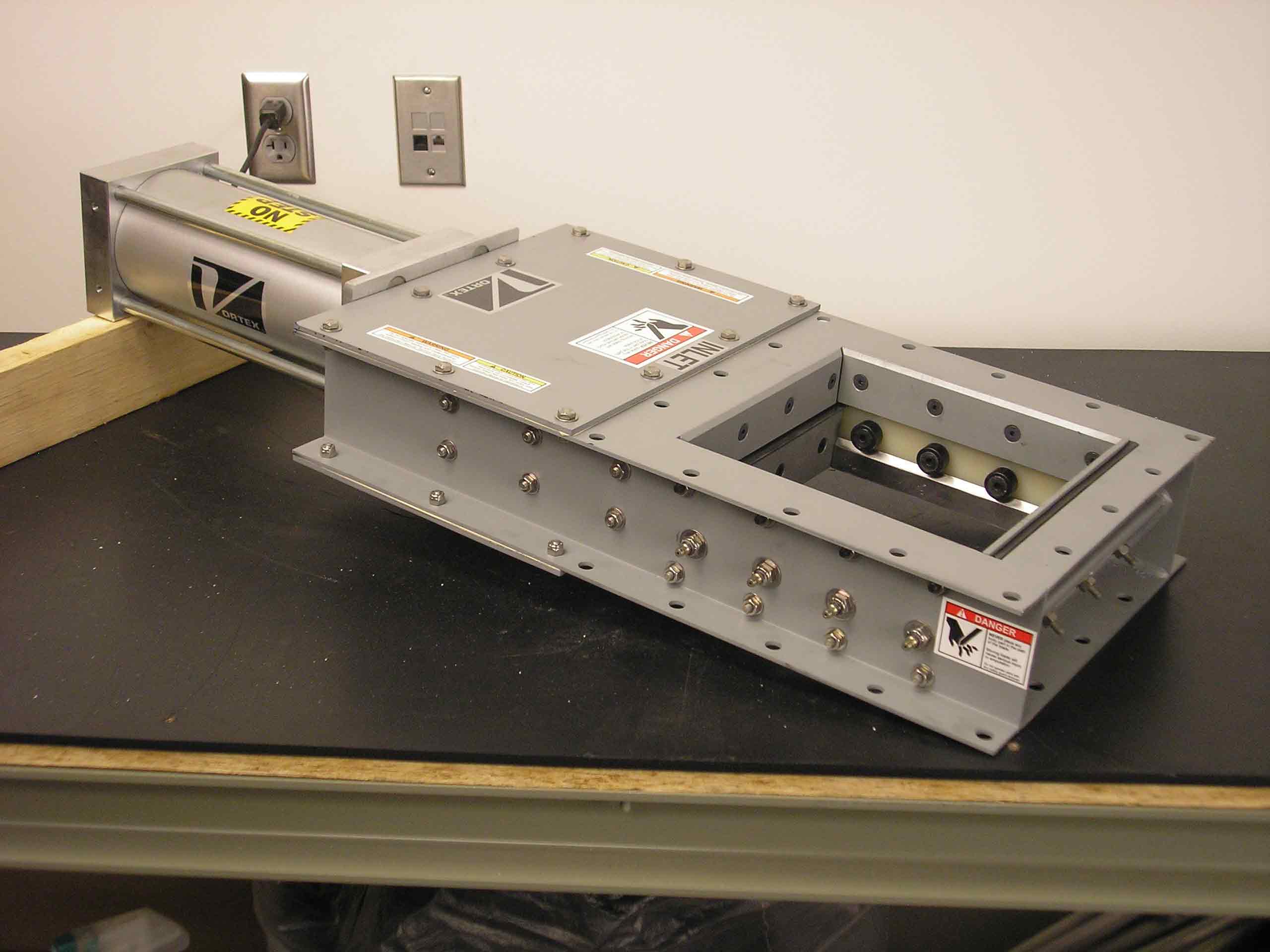

Dual cylinder actuators Return pan & Special Service Inlet

ATEX Zone 20 (internal), ATEX Zone 21 (external), FDA

Modifications have been made to allow for continuous operation at 400 F (204 C) and intermittent operation at 450 F (232 C).

Bonnet is manufactured with solid, gasketed covers. (Allows the valve to accept air purge.)

Clear power covers are provided for the observation of gate blade position.

Additional silicone rubber bonnet seal and a precision ground blade to prevent leaking of fine material to atmosphere.

Standard end seal and end deflector are removed and replaced with a larger end seal, displacement pocket filled and a lower end seal retainer added. *Additional modifications available based on application.

Vortex Titan Slide Gate vs. Alternatives
