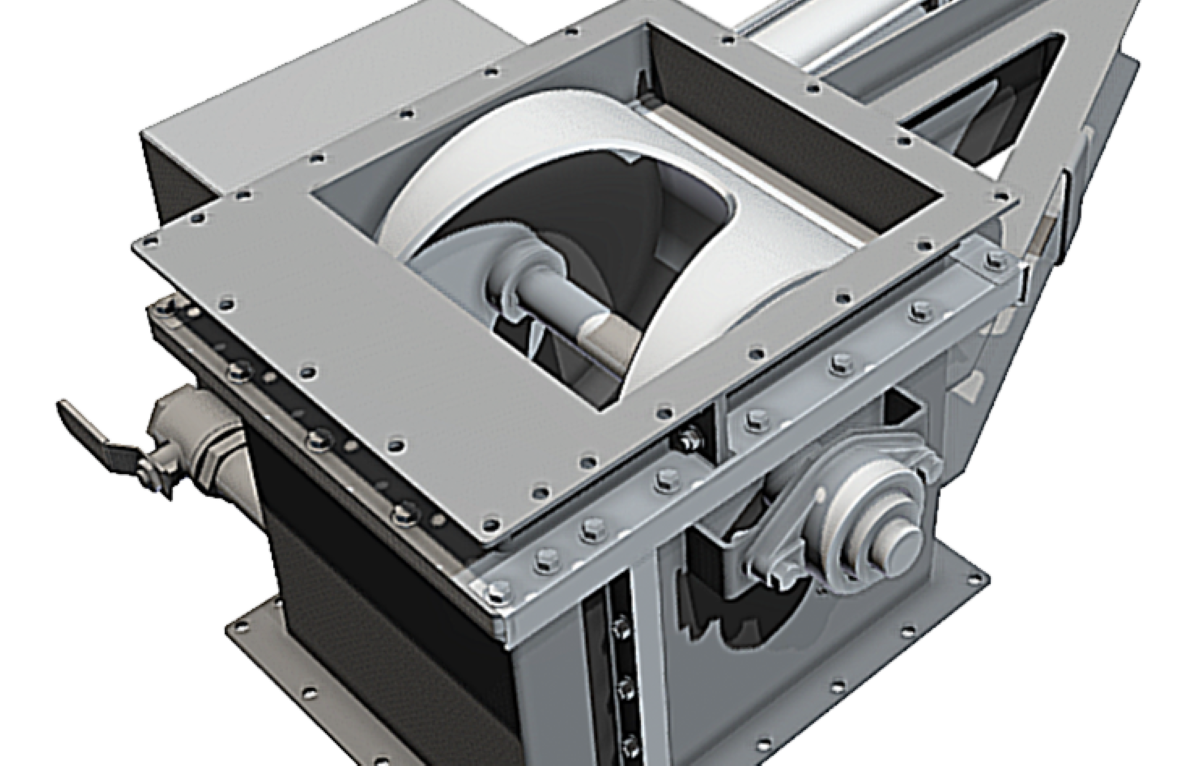

Aero-Slide Drum Valve

The Vortex® Aero-Slide™ Drum Valve is specifically designed for use in conjunction with the Vortex® Aero-Slide™ Conveyor. Unlike the Vortex® Aero-Slide™ Gate Valve, which is primarily intended for shutting off material flow, the Aero-Drum Valve is well-suited for metering material flow.

• Dust-tight relative to the atmosphere
• Can shut off or measure material flow
• No bonnet area. Therefore, material migration and the associated actuation issues are prevented
• Optional dual-cylinder configuration for installation beneath a silo
• Common materials handled: cement and fly ash

Can shut off or measure the flow of material

No bonnet area. Therefore, material migration and the associated actuation issues are prevented

Optional dual-cylinder configuration for installation beneath a silo

Common materials handled: cement and fly ash

Low pressure; air-gravity conveyance only

Lightweight, fluidizable dry bulk solid powders

6–16 in | 150–400 mm (standard even sizes)

Available in square or rectangular sizes

Rubber, felt, and stainless steel (layered seal)

Double-acting air cylinder and linear-action electric actuator
