Titan Lined Diverter

The Vortex® Titan Lined Diverter™ is designed for use in gravity flow applications handling abrasive materials such as coal and frac sand. Material from one source can be diverted to either of two or three destinations.

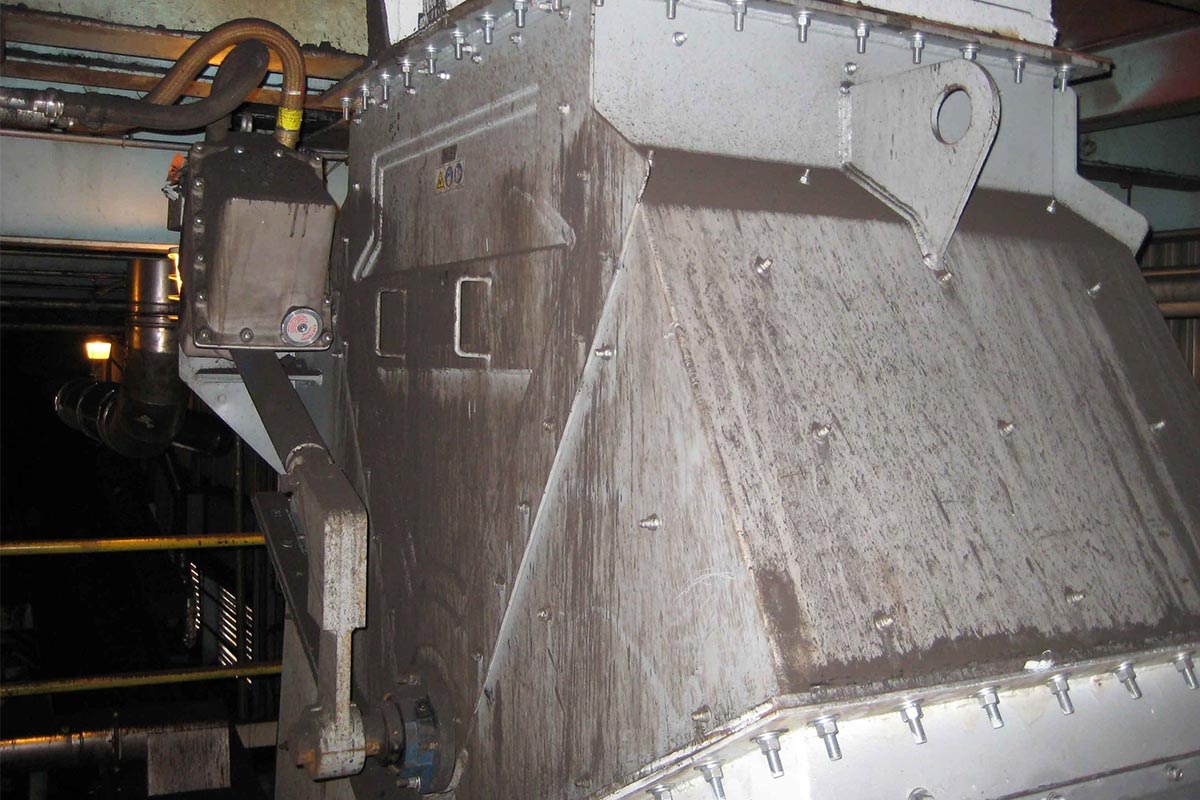

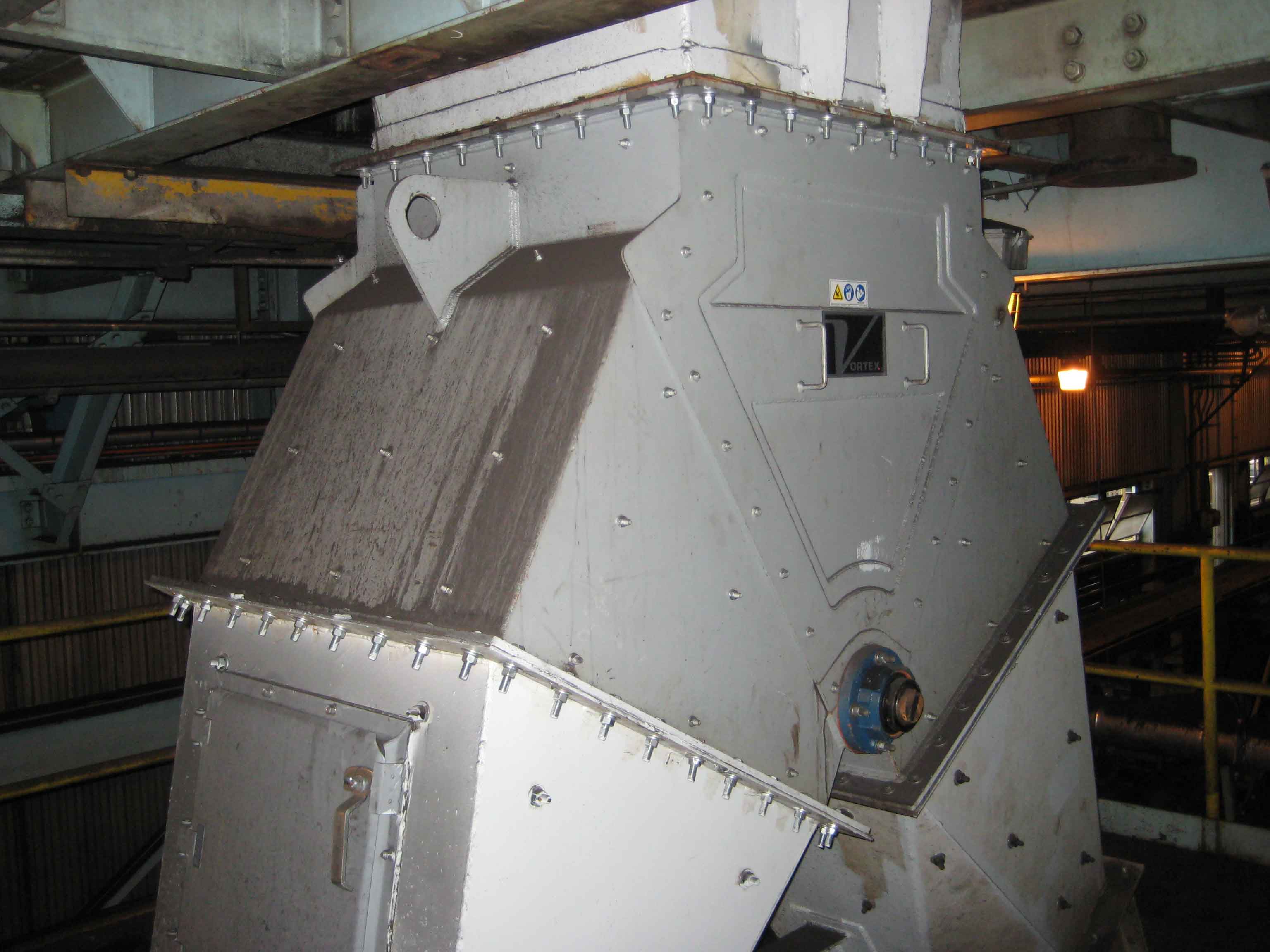

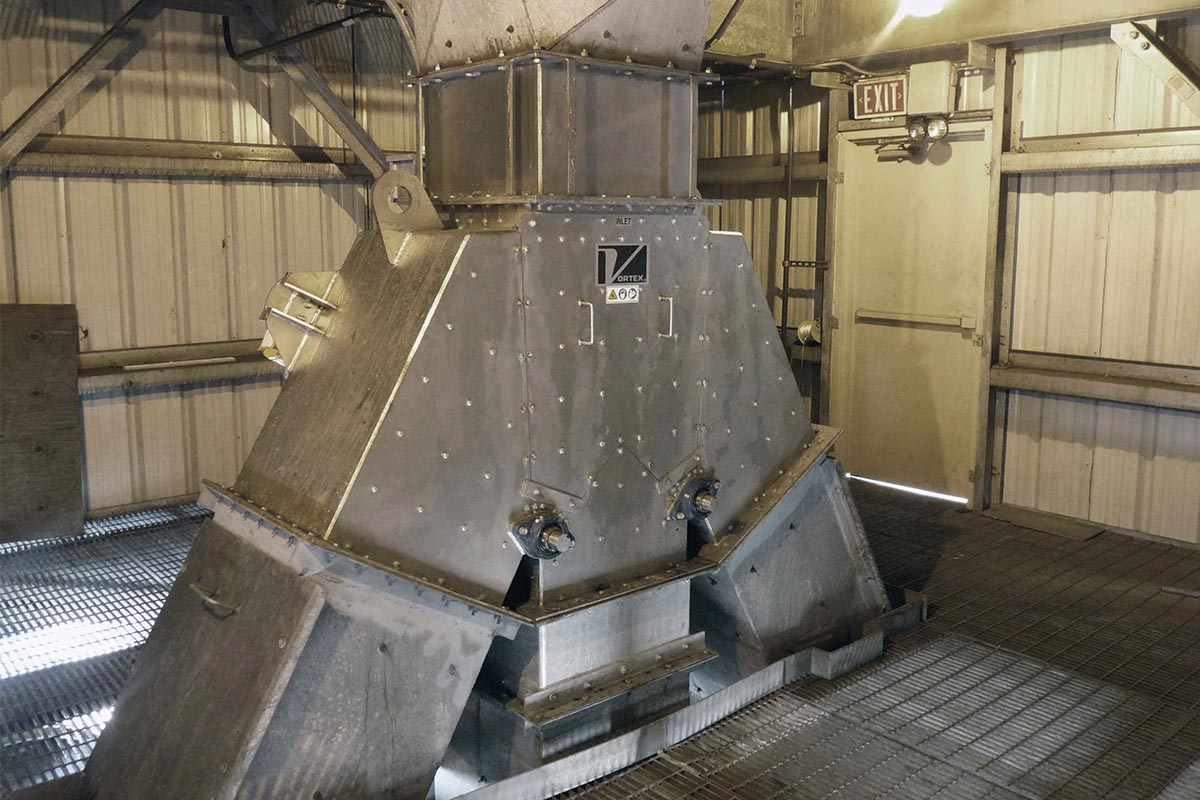

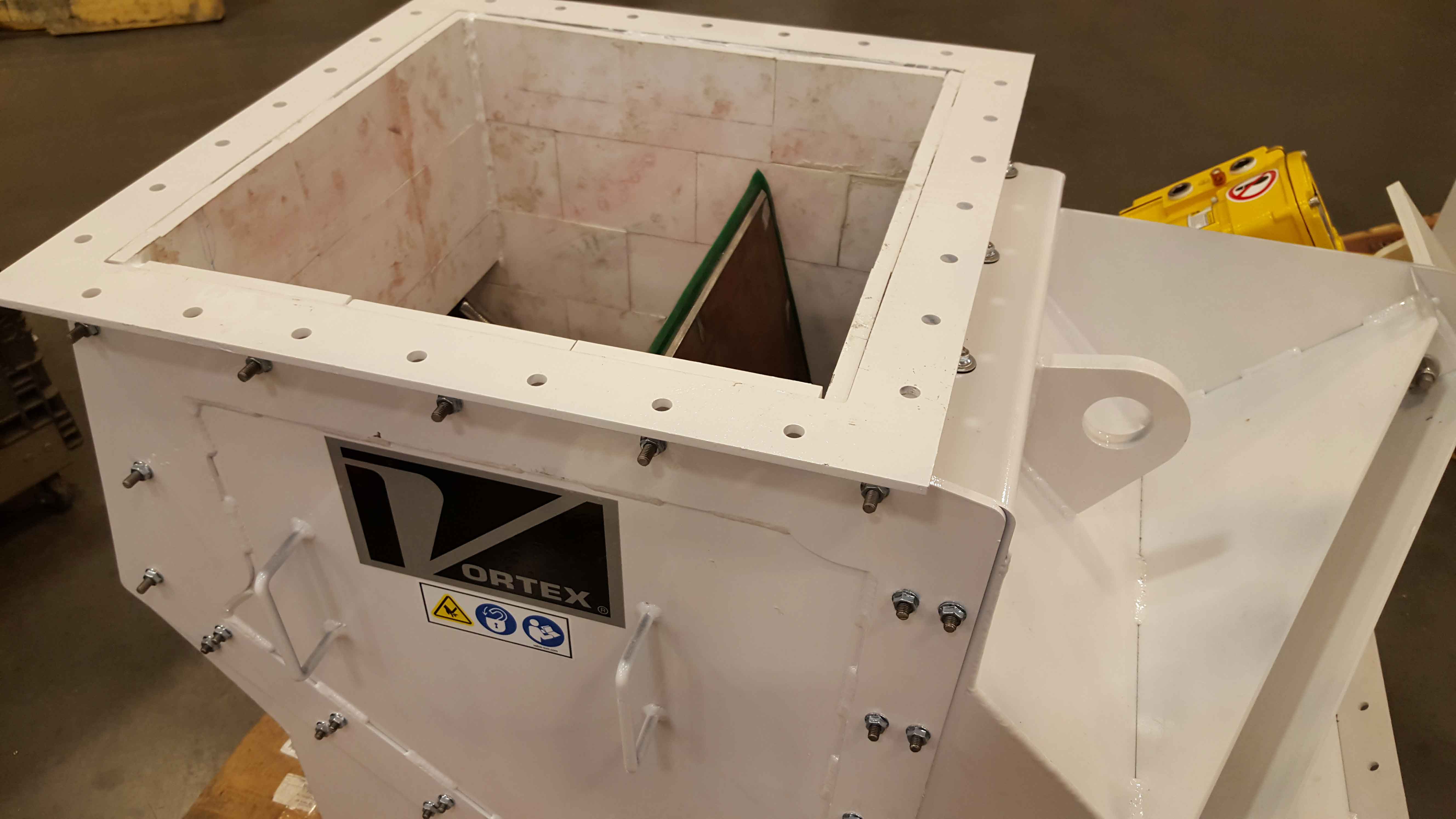

• Replaceable abrasion-resistant liners protect against wear and abrasion to prolong service life
• Removable access panel for in-line inspection and maintenance
• Robust blade seal(s) maintain a positive seal of materials/dust-tight seal across the closed chute(s), to prevent material leakage into the opposite chute(s)
• Flange and outlet chute angle options to match up with pre-existing footprints
• Dust-tight relative to the atmosphere
• Recessed blade(s) to protect the blade(s) and seal(s) from abrasion
• No pinch points or exposed moving parts for safety
• Diverter body constructed from carbon steel with replaceable abrasion-resistant liners.
• Optional “A-style” blade(s) to protect the blade shaft(s) from wear and prevent material “ski jumping

Replaceable abrasion-resistant liners protect against wear and abrasion to prolong service life

Removable access panel for in-line inspection and maintenance

Robust blade seal(s) maintain a positive seal of materials/dust-tight seal across the closed chute(s), to prevent material leakage into the opposite chute(s)

Flange and outlet chute angle options to match up with pre-existing footprints

Recessed blade(s) to protect the blade(s) and seal(s) from abrasion

No pinch points or exposed moving parts for safety

Diverter body constructed from carbon steel with replaceable abrasion-resistant liners.

Optional “A-style” blade(s) to protect the blade shaft(s) from wear and prevent material “ski jumping

Heavy-duty and/or abrasive dry bulk solid materials

Available in square or rectangular sizes. Round transition options are available

Standard flange, ANSI #125/150, DIN PN10 Custom flanges are available

250°F | 120°C for standard gate, with modifications that allow up to 400°F | 205°C

400 BHN abrasion-resistant steel, carbon steel

400 BHN abrasion-resistant steel, UHMW, rubber

Buna-N nitrile rubber, silicone rubber, polyurethane, EPDM rubber

Double-acting air cylinder, hand lever, chain wheel, electric actuator

Magnetic reed switches, proximity switches, or mechanical limit switches

ATEX Zone 20 (internal), ATEX Zone 21 (external), FDA
