SITRANS TS100

SITRANS TS100 is a robust industrial temperature sensor with easy installation and wide measuring range for reliable performance.

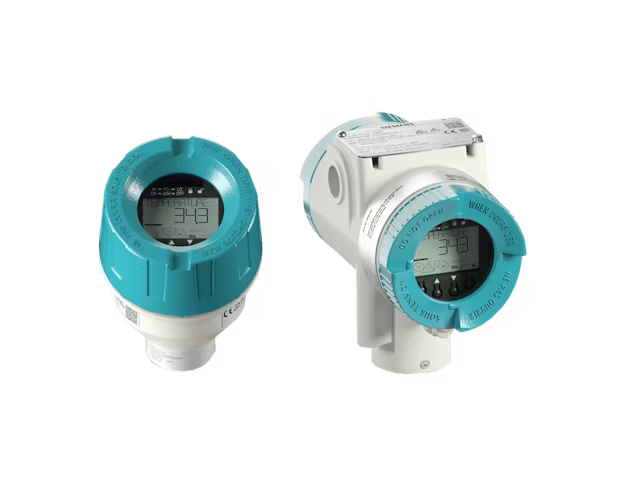

Rugged field-mounted temperature transmitters for reliable, accurate measurement, high availability, and plant safety, helping to prevent downtime in SIL 2/3 applications.

Head-mounted temperature transmitters for reliable measurement, easy integration, and advanced diagnostics, from standard to high-availability applications.

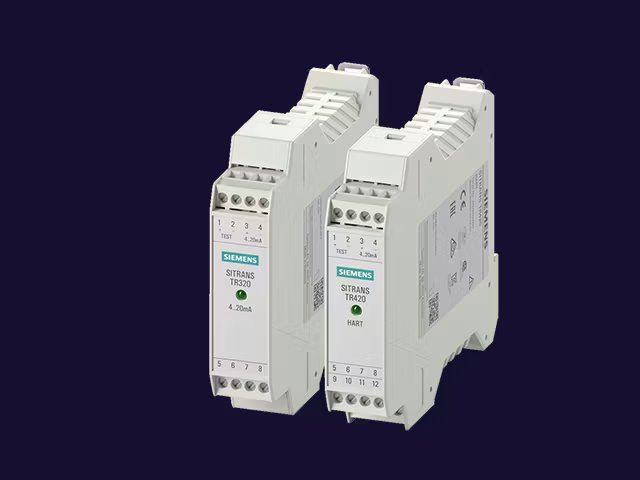

Rail-mounted temperature transmitters for accurate measurement, easy panel integration, and smart diagnostics—from standard loops to high-availability applications.

Based on a robust mineral-insulated cable design, this sensor supports a vast range of applications. It allows for fast commissioning using standard compression fittings or soldering nipples, often eliminating the need for a thermowell. With comprehensive explosion protection, it delivers a highly adaptable, safe and reliable temperature measurement solution for major markets worldwide.

Save time and effort during setup. The highly adaptable design allows for quick integration directly into your process, making it the perfect choice for hard-to-reach spaces and applications with tight clearances.

Operate with complete peace of mind. Featuring intrinsically safe Ex i designs as simple electrical apparatus according to IEC/EN 60079-11, the sensor supports maximum safety even in demanding Zone 0 environments.

Customize the sensor to your exact needs. Choose from various sensor types (Pt100, thermocouples Type J and K), lengths and accuracy classes to perfectly match your specific measurement tasks and operational demands.

Measuring point: Pt 100 Basic: –50 … +400 °C (–58 … +752 °F); Pt 100 Extended: –196 … +600 °C (–321 … +1 112 °F); Thermocouple: –40 … +1250 °C (–40 … +2282 °F) (depending on type) Cable end: –40 … +80 °C (–40 … +176 °F)

Manufacture declaration as simple electrical apparatus according to IEC/EN 60079-11; DNV and EURO marine approvals

Built to last in tough industrial environments, including marine. The mineral-insulated construction protects sensor elements from heavy vibrations and temperature shocks, for long-term stability and highly accurate data.

Easily integrate the sensor into your control systems with multiple connection types, including flying leads, LEMO, M12 or thermocouple plugs, alongside various process connections like surface connection pieces.

Simplify your setup and reduce hardware costs. By using standard compression fittings or soldering nipples, the sensor can be installed directly into the process, allowing for fast commissioning without a thermowell.

Yes. The SITRANS TS100 is designed for simple and flexible installation. By using standard compression fittings or soldering nipples, the sensor can be mounted directly into your process. This eliminates the need for an additional thermowell, which not only reduces hardware costs and accelerates commissioning but also provides highly responsive temperature measurements.

Absolutely. The SITRANS TS100 is a cable-based, mineral-insulated temperature sensor. This robust yet highly flexible construction allows the sensor to be easily routed to fit into hard-to-reach spaces and tight clearances. It is the perfect choice for complex machine designs, compact piping systems or any application where a traditional, bulky connection head won’t fit.

The SITRANS TS100 offers highly versatile connections to seamlessly match your existing infrastructure. Depending on your specific requirements, you can configure the sensor with flying leads, LEMO couplings, M12 connectors or specific thermocouple plugs. Additionally, it features reliable IP54 protection at the critical sensor-to-cable transition, enabling secure and dependable data transmission even in challenging conditions.

Extract IEC 60079-11:2023 chap. 5.5 (The following may be considered to be simple apparatus):

a) passive components, for example, switches, junction boxes, resistors and simple semiconductor devices.

b) sources of stored energy consisting of single components in simple circuits with well-defined parameters, for example, capacitors or inductors, whose values shall be considered when determining the overall safety of the system; and

c) sources of generated energy, for example, thermocouples and photocells, which do not generate more than 1,5 V, 100 mA and 25 mW.

The SITRANS TS100 is a simple resistance thermometer with various sensor types (Pt100/Pt1000 or thermocouples type J or K) with no own source of ignition, such as capacitance or inductance. The complete energy within the intrinsic safe loop is provided by the connected transmitter unit, such as SITRANS TR320. The sensor does not store any energy. All relevant electrical data for the interconnection with the transmitter is described in the valid manufacture declaration which is published on the product website.
