SITRANS FM MAG 1100 - Electromagnetic Flow Sensor

SITRANS FM MAG 1100 is a stainless steel electromagnetic flow sensor with durable liners and electrodes designed for extreme process conditions, high temperatures, and high pressures.

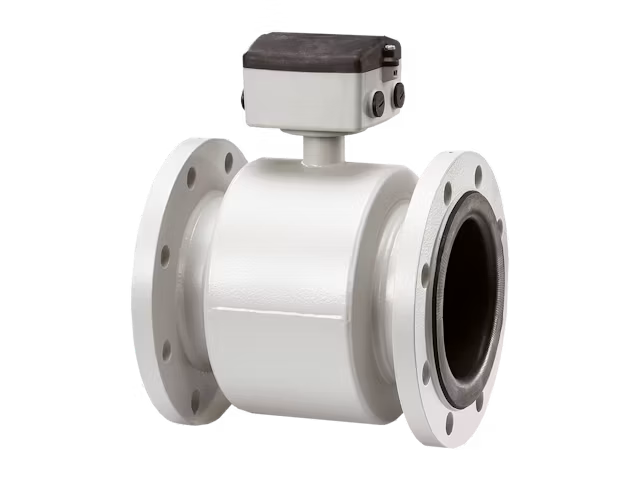

This rugged, fully welded electromagnetic flow sensor provides precise measurements for demanding chemical, mining, and process industries.

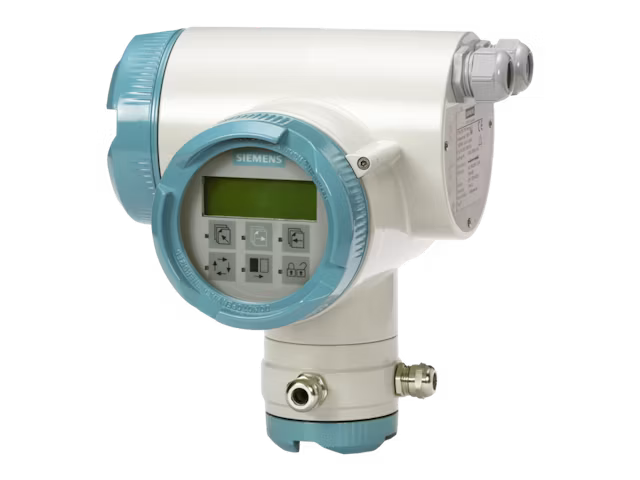

Robust electromagnetic flow transmitter for precise measurement of conductive liquids in demanding process and hazardous area applications with fully Ex-rated I/O.

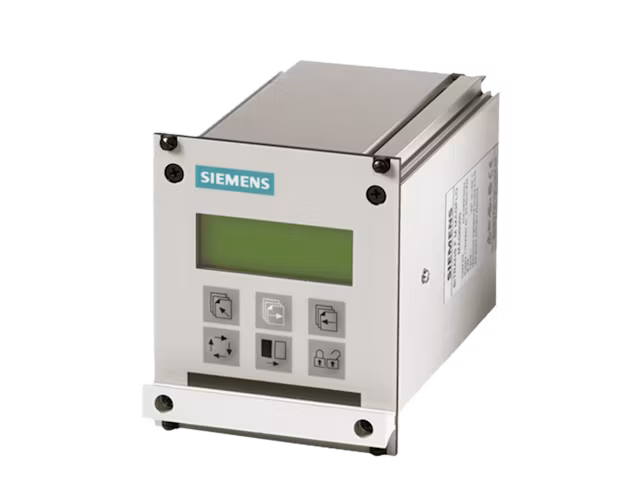

High-accuracy electromagnetic flow transmitter with integrated batch control, plug-in communication modules, and flexible 19-inch rack or wall mounting options.

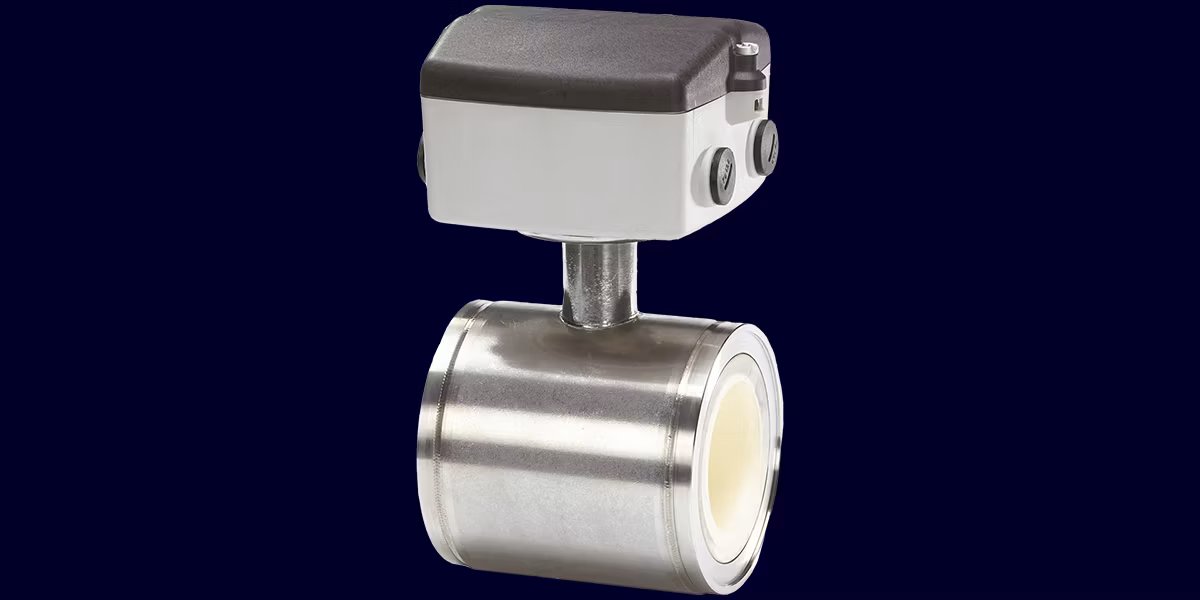

The SITRANS FM MAG 1100 provides robust flow measurement in a space-saving, flangeless wafer design. With its corrosion-resistant AISI 316 stainless steel construction and highly resistant liners such as ceramic and PFA, it effortlessly handles highly aggressive chemicals and extreme temperatures up to 200 °C. When paired with MAG 6000 and MAG 6000 I transmitters, it ensures long-term stability and reliable performance in hazardous environments.

Unique SENSORPROM™ technology automatically stores calibration data and settings. This enables true plug-and-play installation and hot-swappable transmitter replacement without reprogramming, saving valuable time.

The compact wafer design fits easily into tight spaces. It is ideally suited for use with aggressive media, high temperatures, and hazardous Ex-rated environments, thanks to its highly resistant ceramic or PFA liners and various electrode options.

The corrosion-resistant AISI 316 stainless steel housing and robust construction provide exceptional durability. This minimizes process downtime and reduces the total cost of ownership, even in the most demanding applications.

Ambient temperature: -40 to 100 °C (-40 to 212 °F)

Medium temperature: -30 to 200 °C (-22 to 390 °F)

Liners, electrodes, and sensor material

Sensor material: AISI 316L stainless steel (1.4404)

ATEX – 2 GD Zone 1, CSA Class 1, Division 2

The flangeless, space-saving wafer design allows for easy installation between existing pipe flanges, making it ideal for tight spaces while maintaining robust performance in demanding industrial processes.

Handle extreme thermal conditions with ease. Equipped with highly durable liners, the sensor safely measures process liquids at elevated temperatures up to 200 °C (392 °F) for continuous and reliable performance.

Maintain measurement confidence and the in-depth, traceable diagnostic capabilities provided by the system.

The SITRANS FM MAG 1100 features a compact, flangeless wafer design and a corrosion-resistant AISI 316 stainless steel housing. This makes it incredibly durable and easy to install in tight spaces, while its specialized ceramic or PFA liners allow it to handle the most extreme process media.

Yes. The sensor is equipped with highly resistant liners (ceramic or PFA) and electrodes (such as platinum or Hastelloy) to withstand harsh chemicals. For extreme thermal conditions, the specialized MAG 1100 HT (High Temperature) version is designed to safely measure liquids at temperatures up to 200 °C (392 °F).

No, your settings are completely safe. Thanks to the unique SENSORPROM™ memory unit, all calibration data and operational settings are permanently stored within the sensor itself. If you need to replace a MAG 6000 or MAG 6000 I transmitter, the new unit will automatically upload the existing data to ensure a seamless replacement.
