SITOP PSU6200 - High-Performance Power Supply

All-around power supply for standard 12-, 24-, or 48-volt applications and for hazardous locations. The SITOP PSU6200 offers comprehensive diagnostics and reliability.

• SITOP PSU6200, single-phase, 12 V, 24 V, 48 V DC
• SITOP PSU6200, 3-phase, 24 V, 48 V DC
• SITOP RED1200 and PSE202U redundancy modules
• SITOP SEL1200/1400 and PSE200U selectivity modules
• BUF1200 and PSE201U buffer modules
• SITOP CHO1400 Chopper Module
• SITOP PBM1200 Powerboost Module
• SITOP RED1200 redundancy modules
• SITOP SEL1200 48 V/4 x 10 A selectivity module
• SITOP PBM1200 Power Boost Module
• SITOP UPS500S with built-in capacitors
• SITOP UPS1600, optionally with BAT1600 battery modules using lead-acid or LiFePO4 technology to protect against prolonged power outages
• SITOP UPS1600 and CAS1600 capacitor modules with double-layer capacitors (supercapacitors)

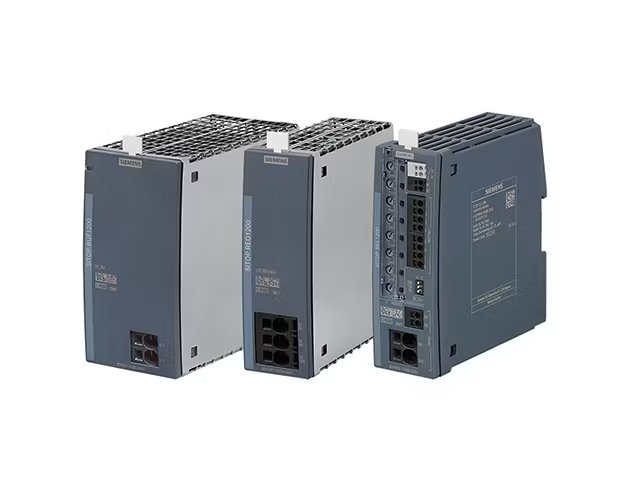

Flexibly expand SITOP power supplies with add-on modules to provide customized, comprehensive protection against power failures, voltage fluctuations, and faulty loads.

SITOP DC UPS modules ensure a reliable 24-V power supply even during a power outage, bridging outages that last minutes, hours, or even several days.

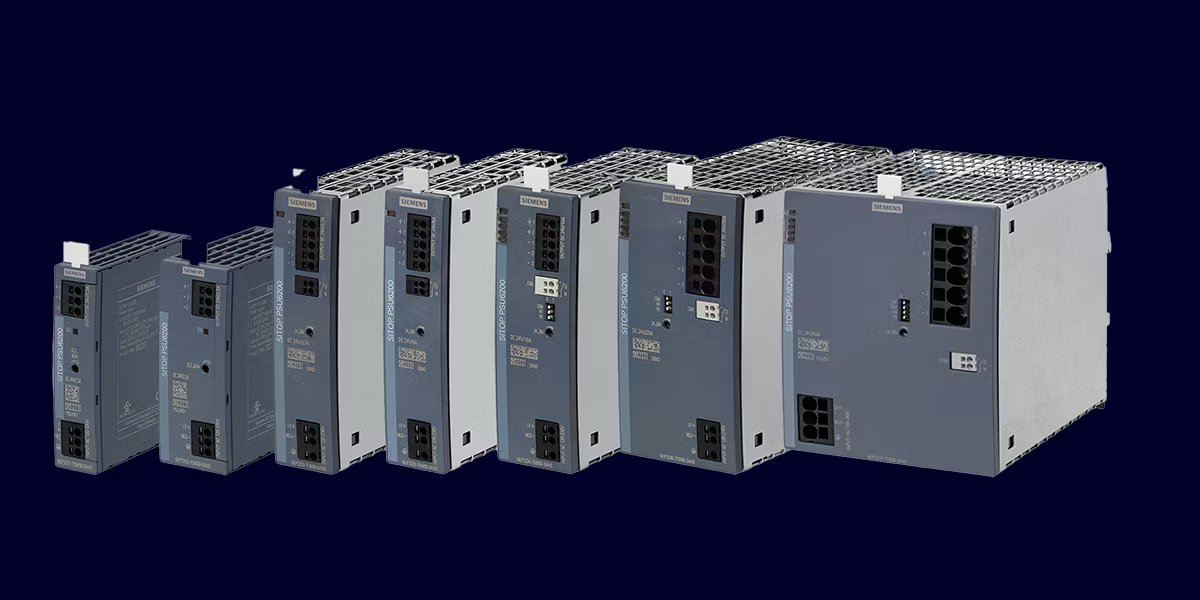

The SITOP PSU6200 is a compact, versatile power supply designed for a wide range of standard applications requiring 12, 24, or 48 V. It offers high performance, high efficiency, comprehensive diagnostics, and operational reliability.

The SITOP PSU6200’s targeted diagnostics monitor the power supply unit's load and service life, indicating status via LEDs. And the SITOP Diagnostic Interface (SDI) enables continuous condition monitoring within your automation system. This helps you proactively address potential issues and maintain system uptime. The SITOP PSU6200 portfolio includes:

Gain insights into the status of your power supply through continuous condition monitoring. Integrate diagnostics into your automation system using just one digital input and a free S7 function block.

Quickly connect the power supply using the clearly marked push-in terminals and mount it in your control cabinet to save space, without requiring any clearance on the sides relative to adjacent devices.

Continuously monitor the status of the power supply using the integrated SITOP Diagnostic Interface (SDI), and integrate the power supply data into your automation system via just one digital input and one S7 function module. Faceplates conveniently display the data in WinCC. On site, the diagnostic monitor indicates the load and service life of the power supply via LEDs.

Get a quick overview of the diagnostic monitor on the front of the power supply. LEDs indicate the status, utilization, or end of life of the power supply.

Ensure a stable power supply even under high loads thanks to 150% extra power for up to 5 seconds per minute and constant current for short-term overloads. The high efficiency of up to 96% results in minimal heat loss, which is also efficiently dissipated through the robust metal housing. High efficiency and, consequently, reliability are further ensured by active power factor correction (PFC), which minimizes reactive current and inrush current.

Connect the power supply quickly and without errors. The wiring features clearly labeled terminals and push-in terminals, as well as a third negative terminal for potential equalization/PELV in accordance with the Machinery Directive.

Use this versatile power supply for special applications as well, such as in hazardous areas. Models with a coated circuit board (conformal coating) allow for use in Zone 2, where an explosive atmosphere can occur due to gases, vapors, or mist. Or use the PSU6200 on DC networks—the universal wide-range input makes this possible.

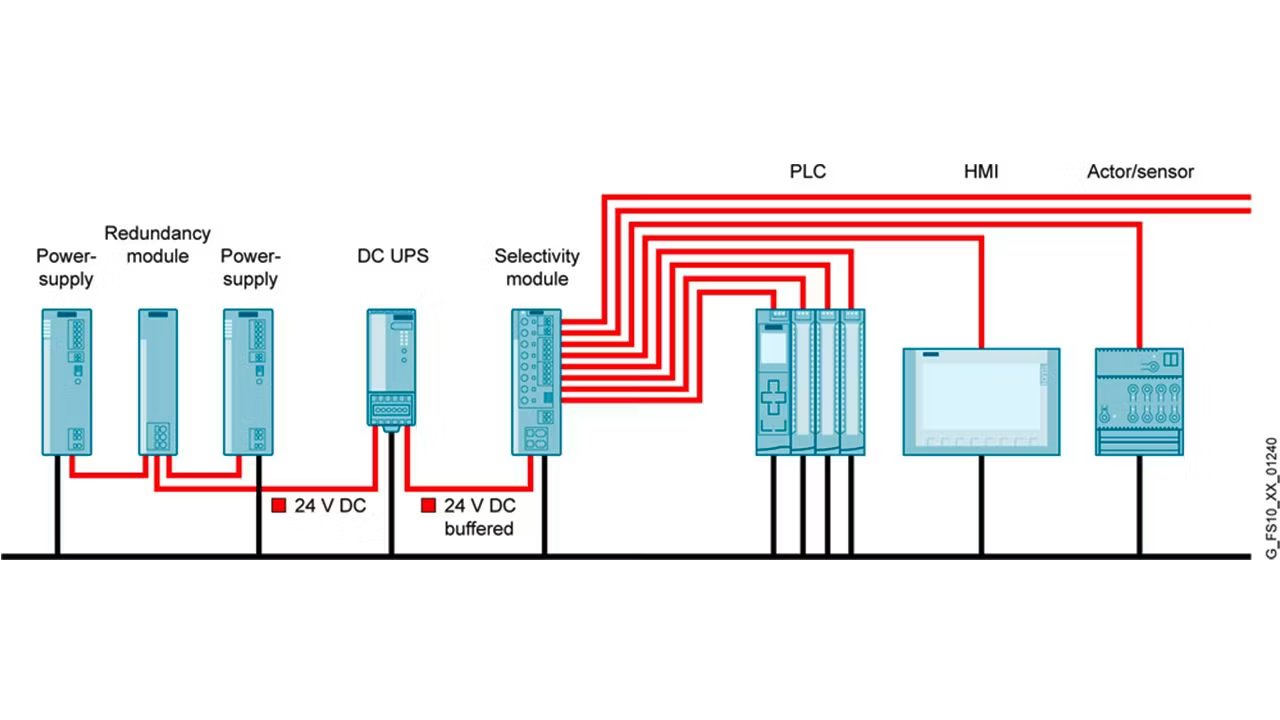

Yes, add-on modules can be connected to increase the availability of 24 V:

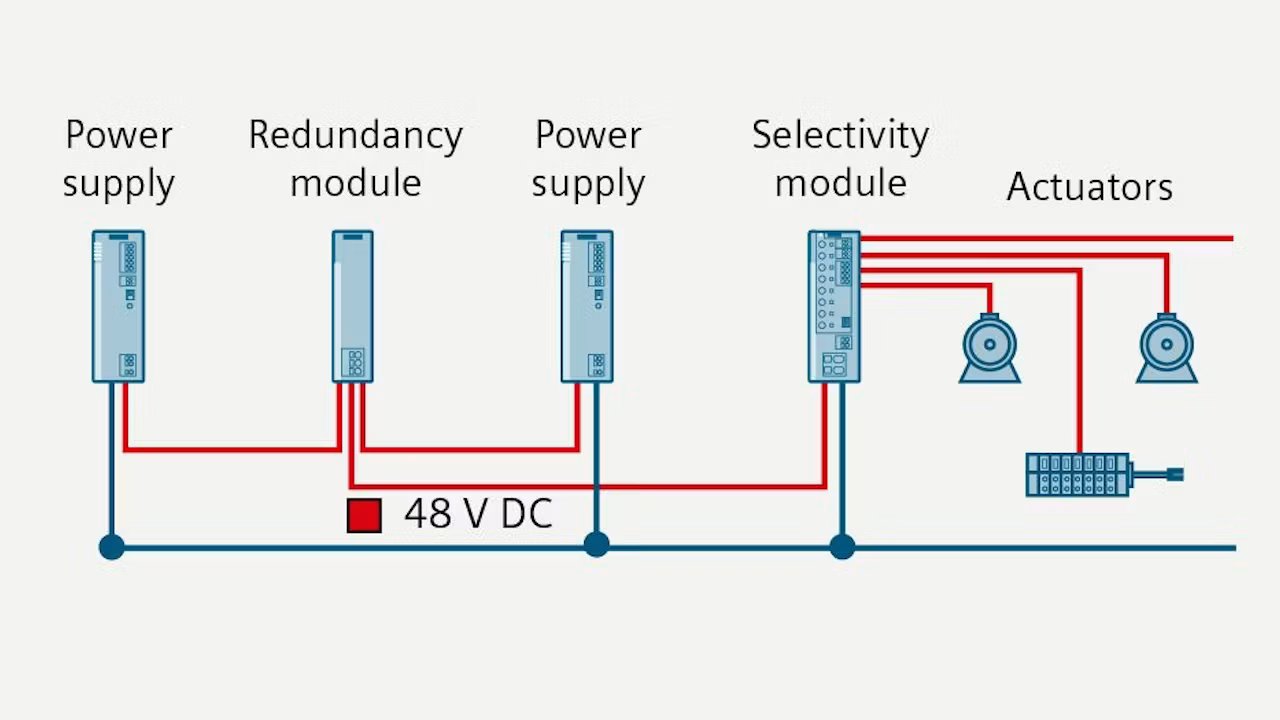

Yes, add-on modules can be connected to increase 48 V availability:

Yes, the 24 V versions of the SITOP PSU6200 can be upgraded to a DC UPS.
