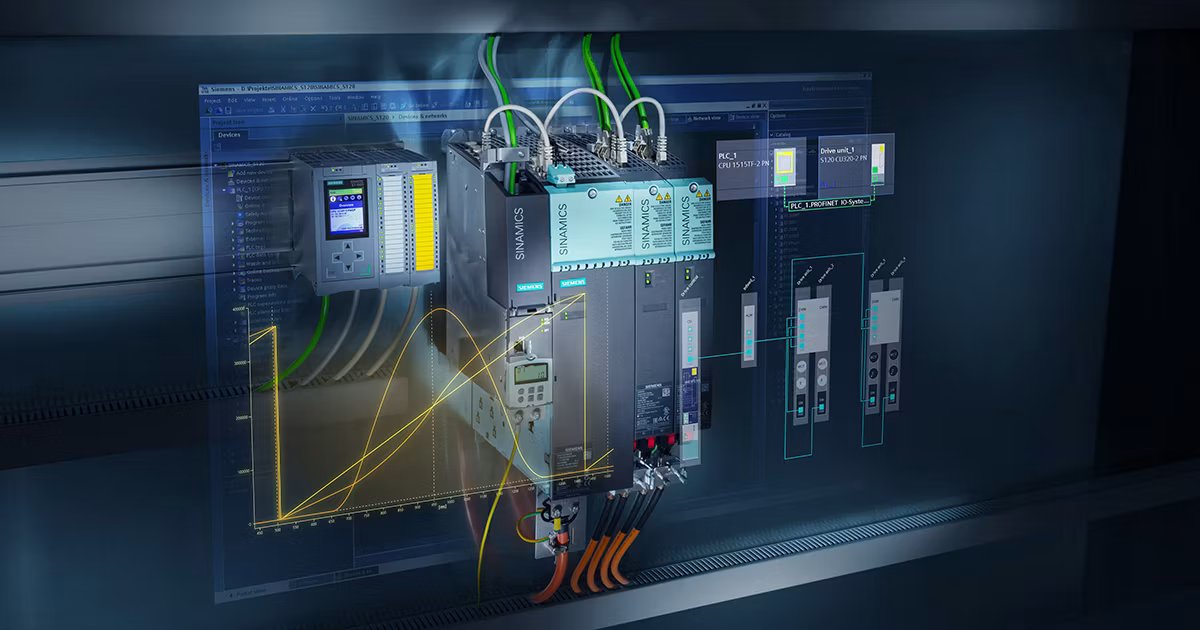

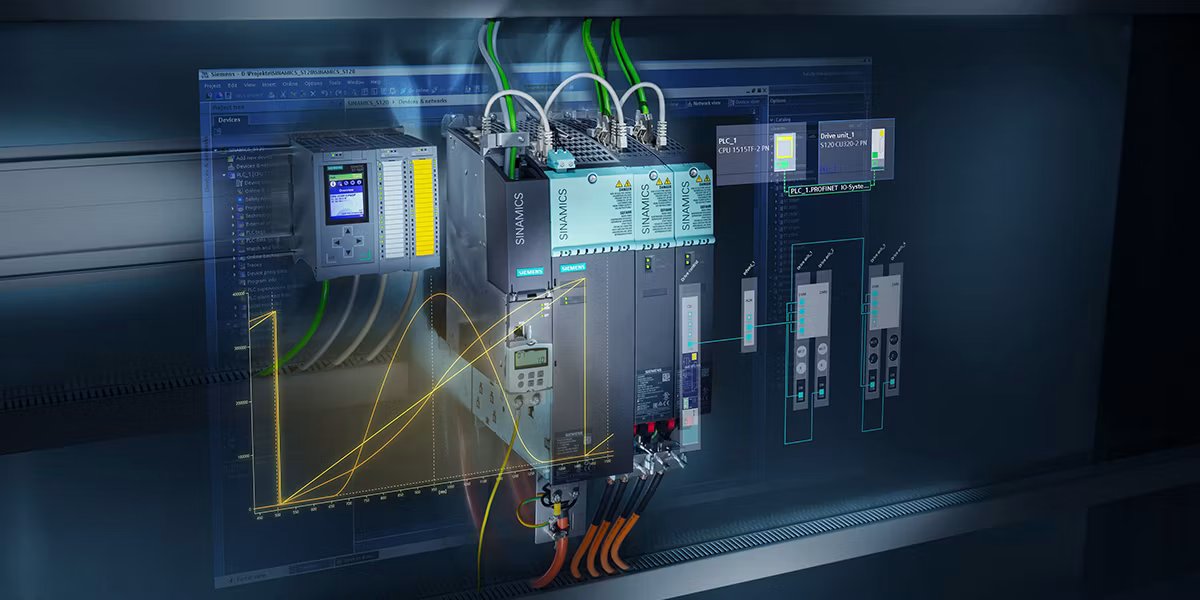

SINAMICS S120 Booksize –— modular highperformance drives

SINAMICS S120 Booksize is a compact, modular drive system for high-performance motion control. Ideal for flexible, precise machine and plant applications.

Discover SINAMICS S120 Booksize, a compact and modular drive system delivering high-performance, precise motion control for machine and plant engineering.

SINAMICS S120 Booksize delivers outstanding versatility, high efficiency, and advanced safety with integrated digitalization options.

Its modular design enables scalable multiaxis motion control, while intelligent functions ensure precise, stable performance.

Safety concepts and digital tools streamline engineering and operation for modern machine and plant environments.

SINAMICS S120 Booksize offers a scalable, modular drive system for motion control tasks. DRIVECLiQ connectivity and flexible component combinations enable seamless integration into multiaxis machine and plant applications.

Integrated safety functions such as STO, SS1 and SLS enhance machine and operator protection. Digital tools, electronic nametags, and TIA integration simplify engineering, commissioning, and lifecycle management.

Protect operating and maintenance personnel with a standardized Safety Integrated concept. Implement integrated safety functions to meet rigorous industry standards for a compliant operational environment.

Flexibly combine SINAMICS S120 Booksize with all S120 versions via the DRIVE-CLiQ interface. Components provide solutions for every drive task, with scalable motion control for positioning and speed control.

Implement speed, torque and positioning functions. Use intelligent startup for independent restart after power interruption. BICO technology interconnects drive I/Os for adaptation to your operating environment.

Integrate a standardized Safety Integrated concept for machine safety. Utilize STO, SBC and SS1 and licensed extended safety functions for compliance with SIL 2 (EN 61508) and PL d (EN ISO 13849-1).

SINAMICS S120 Booksize stands out through its compact design combined with a fully modular architecture. Power Modules and Control Units can be flexibly combined via DRIVECLiQ, enabling highly scalable single and multiaxis setups. This makes it ideal for machines where performance and space optimization are equally important.

The system includes an integrated safety concept with functions such as STO, SS1, and SLS, and can be expanded with Safety Integrated Extended functions. Intelligent startup routines, regulated feedback control and seamless restart after power loss ensure stable, reliable machine operation even in demanding dynamic environments.

Digital services and tools simplify the entire lifecycle: components include an electronic nameplate for fast identification, engineering is streamlined via TIA Portal and SINAMICS Startdrive, and data is available for simulation and planning tools. This reduces commissioning time and improves transparency in operation and maintenance.
