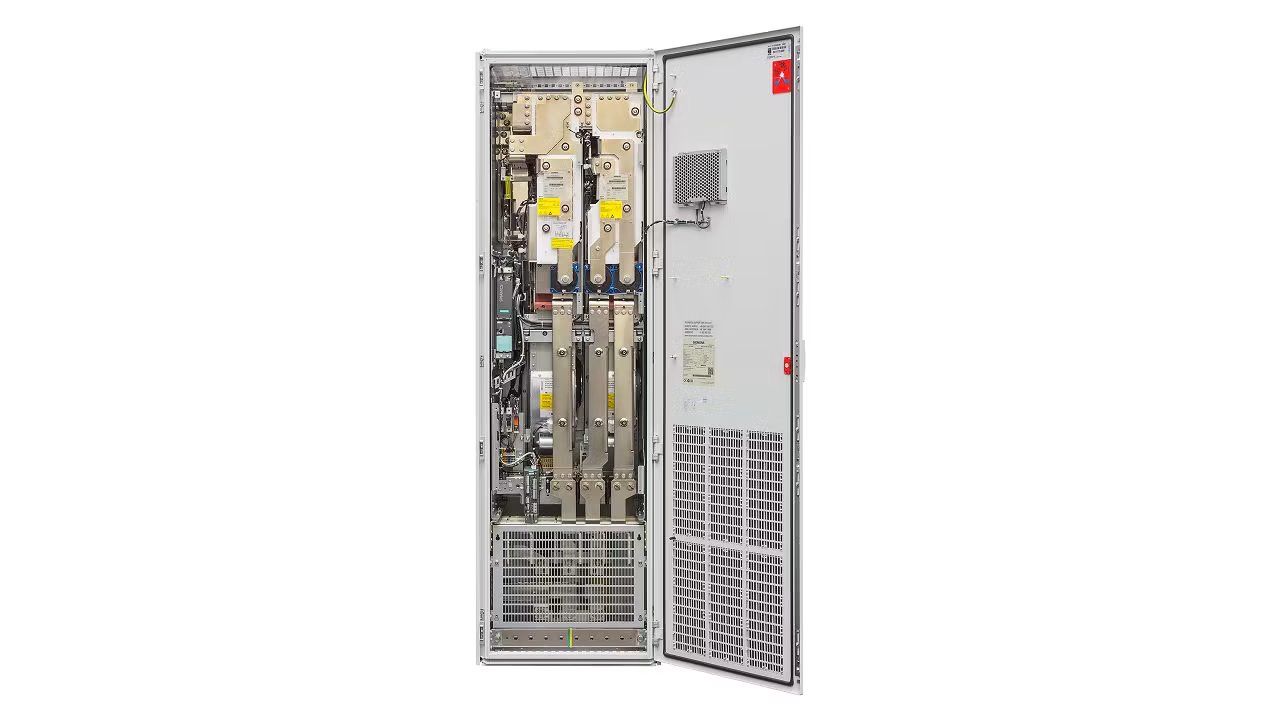

SINAMICS G130 / G150 converters

Flexible, robust converters for medium and high power ratings with seamless integration into modern digital environments.

Enhance flexibility SINAMICS G130 / G150 converters cover a wide range of applications with flexible configurations, multiple voltage levels and I/O expansion options.

Provide reliable operation They deliver robust performance for industrial environments and support heavy-duty applications with high availability.

Simplify operation An easy-to-use operator panel enables simple parameter setting and monitoring, while TIA Portal supports efficient engineering.

​500 … 600 V 3 AC: 110 … 1000 kW​

U/f, Vector control (speed / torque) w/ and w/o encoder​ for applications with constant torque requirements

​Asynchronous, Synchronous, Synchronous Reluctance​

Asynchronous, Synchronous, Synchronous Reluctance​

160% for 10 seconds or 150% for 60 seconds HO-load cycle, 150% for 10 seconds or 110% for 60 seconds LO-load cycle

160% for 10 seconds or 150% for 60 seconds HO-load cycle, 150% for 10 seconds or 110% for 60 seconds LO-load cycle​

PROFINET (RT / IRT, MRP & S2 redundancy)​ PROFIBUS DP​ ETHERNET/IP​ MODBUS TCP​ SINAMICS Link

SINAMICS Safety integrated (PROFIsafe),​ Basic and various extended safety functions,​ SIL 2 according IEC 61508 and IEC 61800-5-2,​ PL d and category 3 according EN ISO 13849-1

Covers the full industrial voltage range with flexible I/O expansion and power options.

Easy access to all modules with comprehensive tools for commissioning, operation, and maintenance.

Field‑proven, robust system ensuring maximum availability and fast operational recovery in harsh industrial environments.​

SINAMICS G130 and G150 variable-speed drives are used wherever bulk, liquid or gaseous materials have to be moved, transported, pumped or compressed.

Typical applications include pumps, fans, compressors, belt conveyors, ship’s drives, mills, mixers, kneaders, crushers, agitators, rotary furnaces and extruders.

Yes, our SINAMICS G130/G150 drives are ideal for several key industries, including Paper and Metals, Rubber, Oil and Gas, Marine and Water and Waste, where their robust performance and flexibility provide significant benefits.
