SIMATIC MICRO-DRIVE Drive System

SIMATIC MICRO-DRIVE is a servo drive system for 24 V to 48 V motion control. Ideal for AGVs, positioning tasks and compact machines.

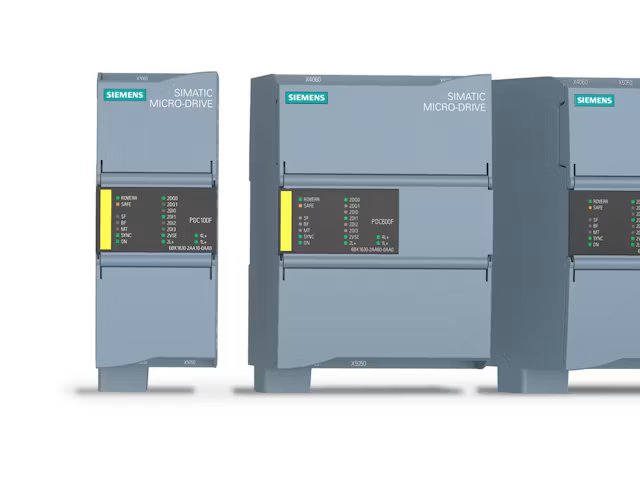

• PDC100(F): Frame size: 50 mm / Power: 100 W
• PDC600(F): Frame size: 90 mm / Power: 600 W
• PDC1000V1: Frame size: 90 mm / Power: 1000 W

Our integrated SIMOTICS E drive system combines brushless DC motors and three gearbox types. This modular, extra low-voltage system eliminates costly development, boosting flexibility and productivity in industrial automation.

SIMATIC MICRO‑DRIVE combines safety extra‑low voltage operation with high‑performance motion control. Integrated into Totally Integrated Automation (TIA), it enables seamless engineering, flexible system design and advanced safety functions — from compact machines to mobile and distributed applications.

Operation in the safety extra-low voltage range from 24 to 48 V reduces risks for personnel and machines while enabling reliable motion control in sensitive applications.

Fully integrated into Totally Integrated Automation, SIMATIC MICRO-DRIVE enables efficient engineering, commissioning and diagnostics using familiar SIMATIC tools.

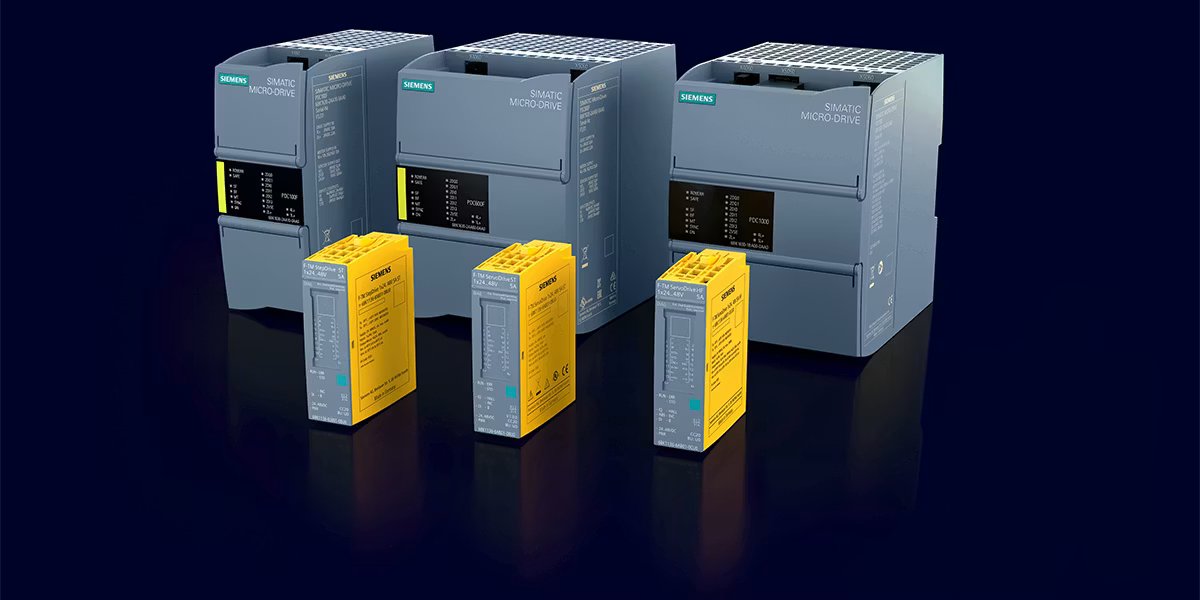

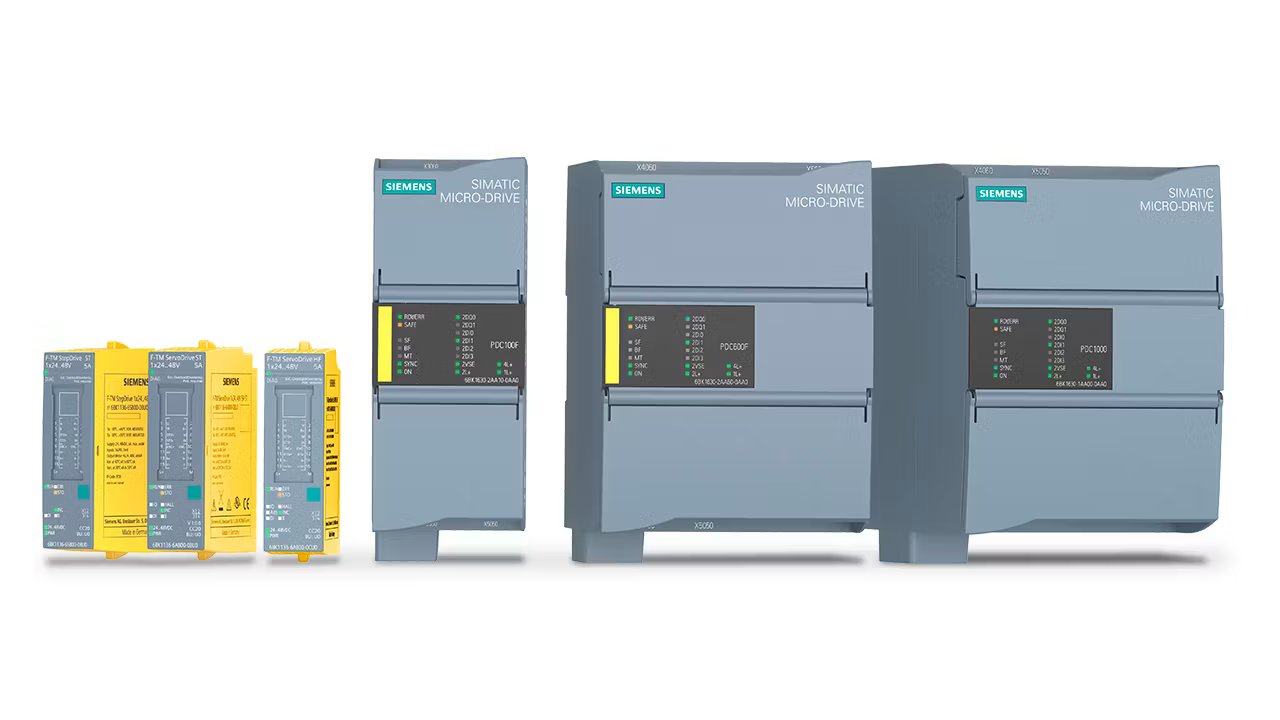

A modular system of PDC drives, TM Drives, motors and partner components allows scalable solutions — from compact control cabinets to distributed motion concepts.

Standalone servo drive with PROFINET interface

Technology module for SIMATIC ET 200SP

24–48 V DC (safety extra-low voltage)

EC and servo motors with encoder feedback

PDCxxx: Standard with hard-wired STO PDCxxxF: Safety Integrated-functions via PROFIsafe

Choose between three variants based on power and frame size:

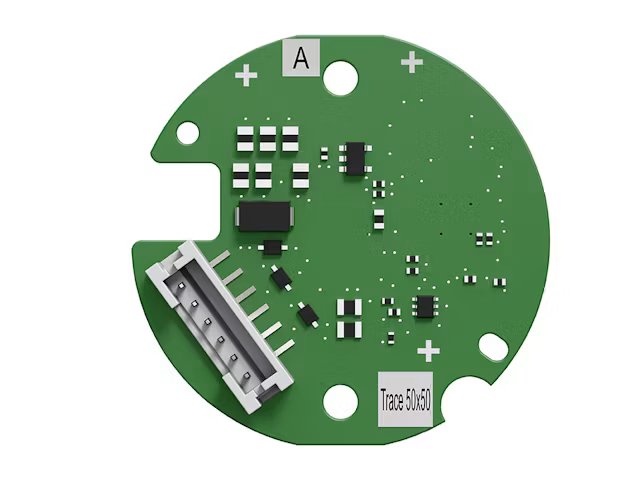

Automatic identification and simplified commissioning through IQ encoder technology significantly reduce engineering effort and commissioning time.

SIMATIC MICRO-DRIVE is used for precise motion control in safety extra-low voltage applications such as AGVs, intralogistics, positioning systems and medical technology.

PDC is a standalone servo drive for higher performance and extended safety functions, while TM Drives are compact technology modules integrated into SIMATIC ET 200SP for distributed concepts.

SIMATIC MICRO-DRIVE supports SIMOTICS E, depending on encoder and performance requirements.
