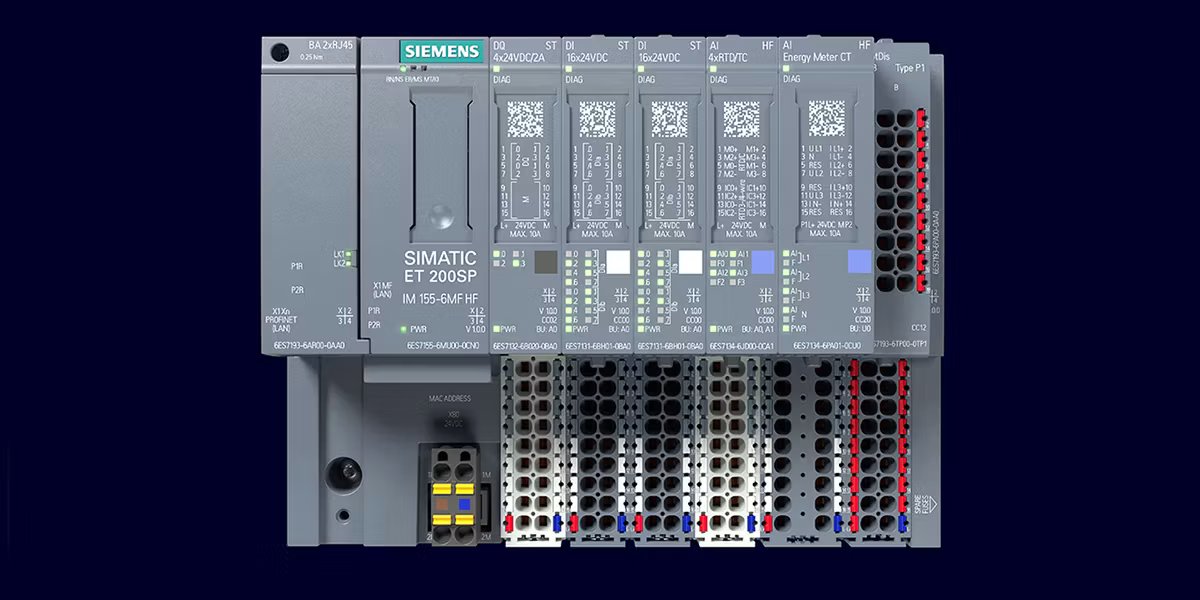

SIMATIC ET 200SP - The Scalable Peripheral System

Optimize cabinet space with the SIMATIC ET 200SP, a powerful I/O system that is 50% narrower than comparable systems.

Using the SIMATIC S7-1500 controller provides you with top performance and built-in future-proofing.

Connect your TIA Portal engineering system in the cloud to on-premises SIMATIC hardware. Access it anytime, from anywhere, across network boundaries.

SIMATIC ET 200SP stands out as an advanced, high-performance I/O system for compact control cabinets. This system impresses with its remarkable performance combined with a particularly compact design.

This innovative I/O system optimizes efficiency, streamlines deployment, and ensures scalable, future-proof architectures across a wide range of industrial applications.

Unlock maximum flexibility and efficiency with our compact, modular solution, perfectly optimized for decentralized control architectures within small switch boxes.

The system is designed for easy wiring, service-friendly maintenance, comprehensive diagnostics, and seamless expandability. Achieve long-term savings and maximize the efficiency of your operations.

Explore the vast potential of the ET 200SP ecosystem! With its comprehensive portfolio, our solution is perfectly suited for a wide range of applications and performance levels to meet your diverse automation needs.

SIMATIC ET 200SP is very easy to install and extremely user-friendly. Thanks to its reliability and safety, it operates continuously.

Even with its compact design, the SIMATIC ET 200SP is one of the most powerful distributed I/O systems with integrated safety functions and multi-hot-swapping capability.

SIMATIC ET 200SP adapts to your communication standard. The range of supported protocols meets all possible requirements. Thanks to MultiFieldbus, you can use the optimal protocol for your application.

SIMATIC ET 200SP makes safety-related applications very easy. The safety modules for digital inputs (DI) and digital outputs (DO) are the same size as the standard modules. Their functional safety is certified in accordance with EN 61508.

The SIMATIC ET 200SP IO-Link Master enables consistent storage of IO-Link device and master parameters. This makes it possible to swap modules—whether master or device—without a programming device and without backing up the data. With SIMATIC ET 200SP stations, hot swapping is also possible for multiple modules (Multi Hot Swapping). This allows multiple modules to be removed and replaced simultaneously during operation.

The SIMATIC ET 200SP shielding concept covers the conductor, the terminal box, the backplane bus, and the PROFINET cable. It ensures the highest possible electromagnetic compatibility (EMC) and improves signal quality.

With a height of approximately 115 mm, the system accommodates 16 channels with a single-wire connection (without AUX terminals). With a 3-wire connection and AUX terminals, the height is 140 mm for 8 channels. The depth is approximately 75 mm.

Thanks to the push-in terminal, you don't need a tool when wiring, and you only need a screwdriver to remove the cable.

Distributed I/O System (MultiFieldbus)

Support for Profinet, Ethernet/IP, and Modbus TCP protocols

Digital, analog, fail-safe I/O, motor starters, technology, and communication modules

Integrated System and Module Diagnostics
