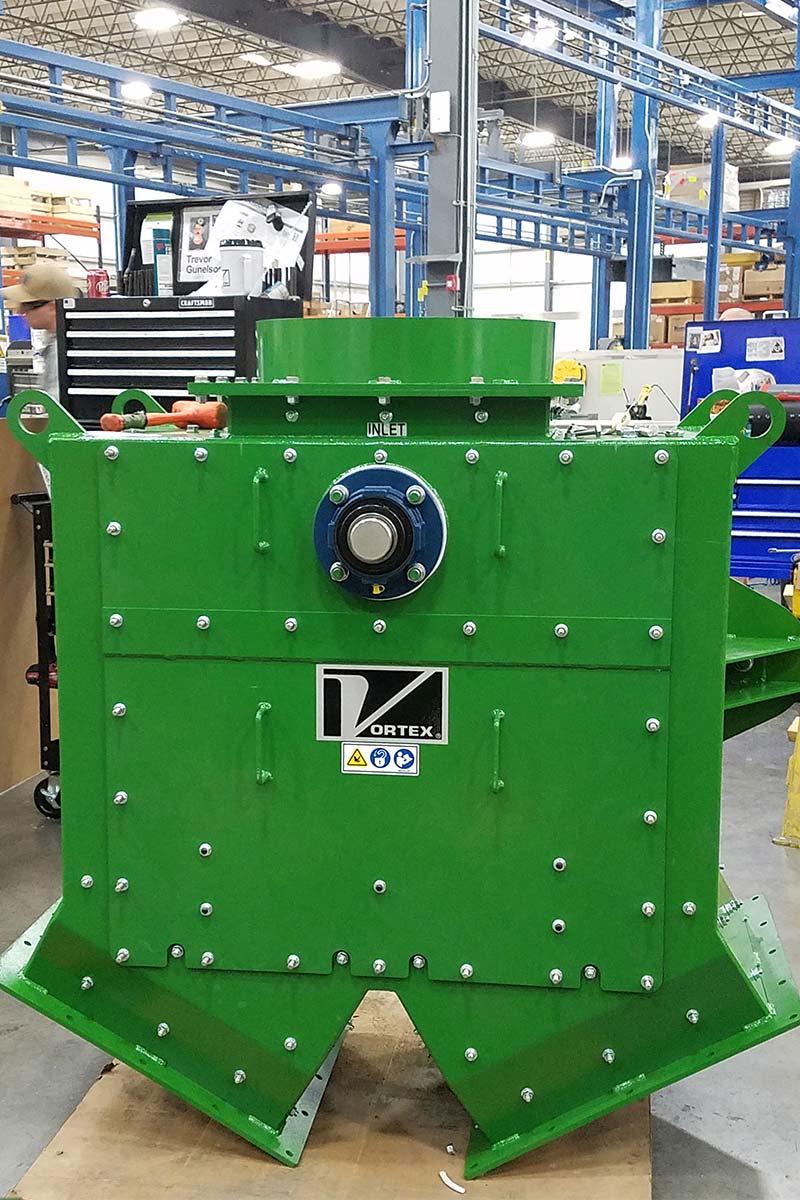

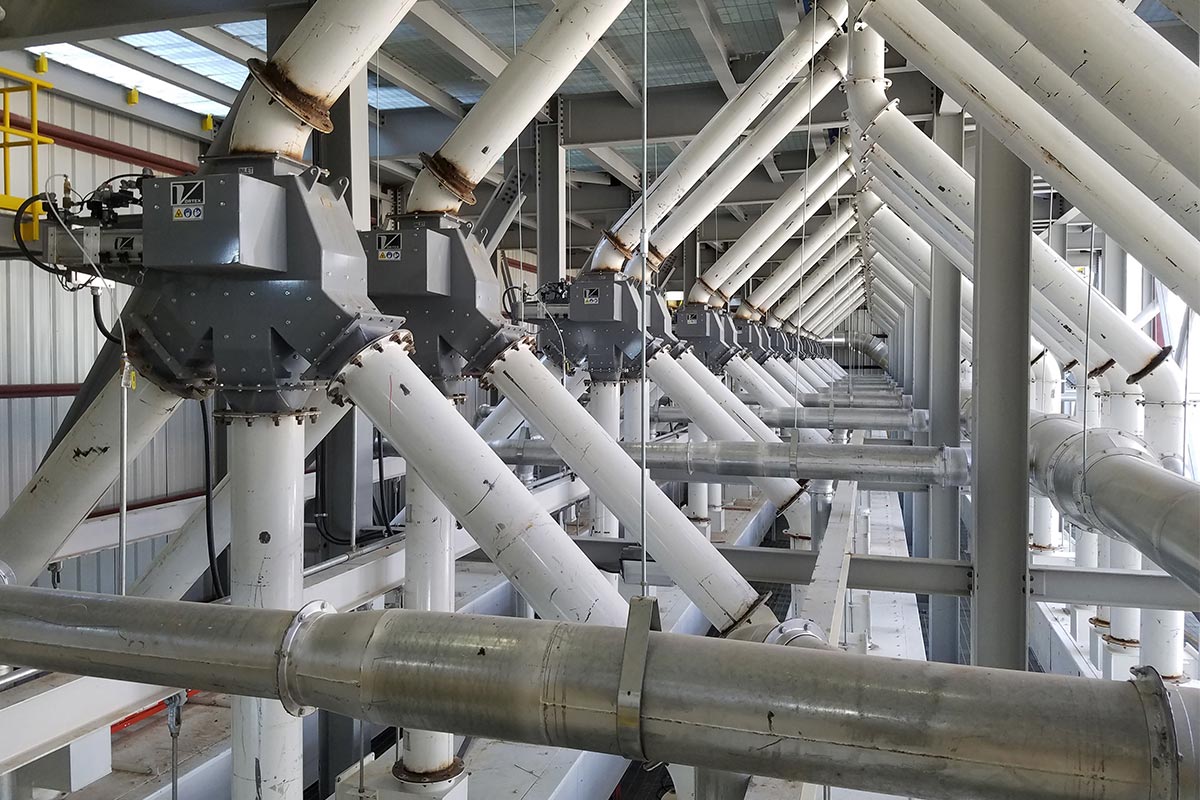

Pivoting Chute Diverter

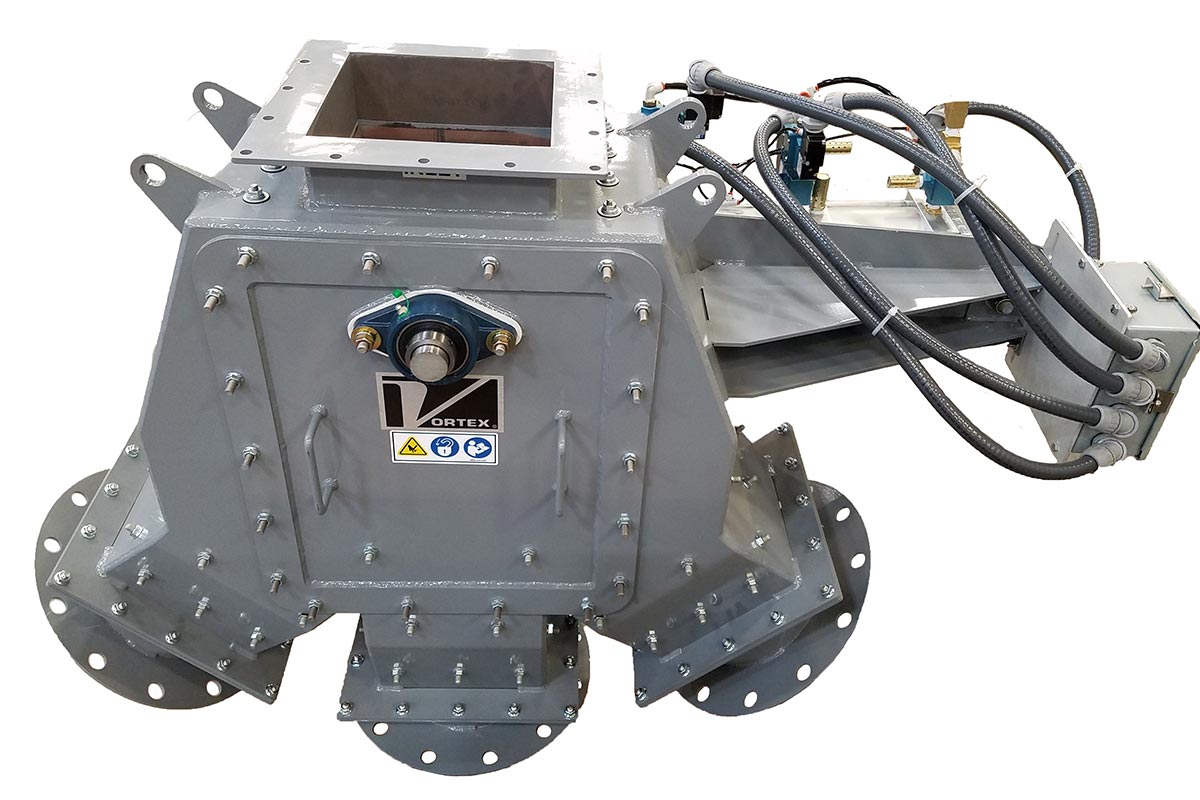

The Vortex® Pivoting Chute Diverter™ is designed to handle abrasive materials in gravity-flow applications. The Pivoting Chute Diverter is dust-tight to the atmosphere, can be shifted “on the fly,” and is available in 2-way and 3-way configurations.

• Can be used to split the flow
• Removable access panel for in-line inspection and maintenance
• Inlet chute to better direct the flow of material through the pivoting chute
• Unobstructed chutes for unrestricted material flow
• Replaceable parts to extend service life
• A replaceable wear and containment bar protects against abrasion and prevents material from migrating into the opposite outlet chute(s)
• No pinch points or exposed moving parts for safety
• No internal cavities to prevent wedging, lodging, and spoilage
• Designed for wear and abrasion resistance

Removable access panel for in-line inspection and maintenance

Inlet chute to better direct the flow of material through the pivoting chute

Unobstructed chutes for unrestricted material flow

Replaceable parts to extend service life

A replaceable wear and containment bar protects against abrasion and prevents material from migrating into the opposite outlet chute(s)

No pinch points or exposed moving parts for safety

No internal cavities to prevent wedging, lodging, and spoilage

Designed for wear and abrasion resistance

Heavy-duty and/or abrasive dry bulk solid materials

Available in square or rectangular sizes. Round transition options are available

Standard flange, ANSI #125/150, DIN PN10. Custom flanges are available.

400 BHN abrasion-resistant steel, chromium carbide

Double-acting air cylinder, electric actuator

Magnetic reed or proximity switches

ATEX Zone 20 (internal), ATEX Zone 21 (external), FDA

Modifications have been made to allow for continuous operation at 550°F (287°C) and intermittent operation at up to 600°F (315°C). *Additional modifications are available depending on the application.

Vortex Pivoting Chute Diverter vs. Alternatives
