Overband Magnetic Separators

Bunting overband magnets remove tramp metal from conveyors in recycling, mining, and quarrying. Self-cleaning models available in permanent or electro styles.

• Magnetic Separation
• Overband Magnets
• Mobile crushers and screeners
• Lightweight ferrous recovery
• Construction and demolition recycling
• No power required for magnetic field
• Cleated self-cleaning belt system
• Available in to suit working gaps up to 400mm (16″)
• Mobile recycling and crusher systems
• Mining, quarrying and bulk aggregate systems
• Removal of challenging ferrous metal such as digger teeth
• Powerful electromagnetic coil
• Air-cooled design, no oil present
• Highest magnetic power to weight ratio of any overband magnet
• Optional armored belt
• Supplied with air or oil cooled transformer rectifiers
• Mining, quarrying, and bulk aggregate
• Bulk handling terminals and waste to energy plants
• Deep burden depths and high-speed belts
• Rugged construction with armored belt options
• Works at increased suspension heights up to 800mm (32″)
• Suitable for belt widths up to 2400mm (96″)
• ATEX rated models available
• Recycling and waste management facilities
• Air-cooled design – no oil present, reducing maintenance
• For conveyors from 500mm (20″) up to 3000mm (118″) wide
• Effective suspension heights up to 1000mm (40″)
• Permanent extension magnets can be attached to extend the discharge zone away

Bunting® Overband Magnets, also known as Crossbelt Magnets, are powerful, self-cleaning magnetic separators built to remove tramp ferrous metal from conveyed material. Installed inline or across the belt, they protect crushers, shredders, and other downstream equipment from costly metal damage and keep operations running without unplanned stops. Offered in permanent or electromagnetic models, Bunting Overband Magnets are widely used in mining, aggregates, recycling, and other heavy industrial applications around the world.

The most economical and low-maintenance option for continuous tramp metal separation. These self-cleaning magnets use high-strength permanent magnet blocks to extract ferrous metal from conveyed materials.

This high-intensity electromagnetic separator is 185% stronger and 25% lighter than conventional permanent overband (crossbelt) magnets . Ideal where weight, space, and enhanced metal separation are critical.

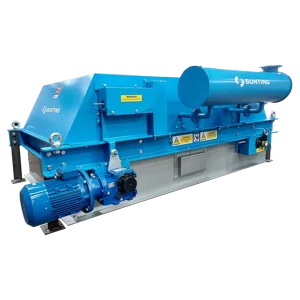

Engineered for heavy-duty applications where maximum separation strength is essential. Oil-cooled electromagnets achieve deep field penetration for removal of large tramp metal pieces from deep burden depths.

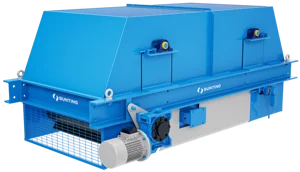

Engineered for demanding environments where reliability and low maintenance are critical. The heavy-duty air-cooled electromagnetic overband range is available in over 300 sizes, providing powerful tramp metal separation without the need for oil circulation systems.
