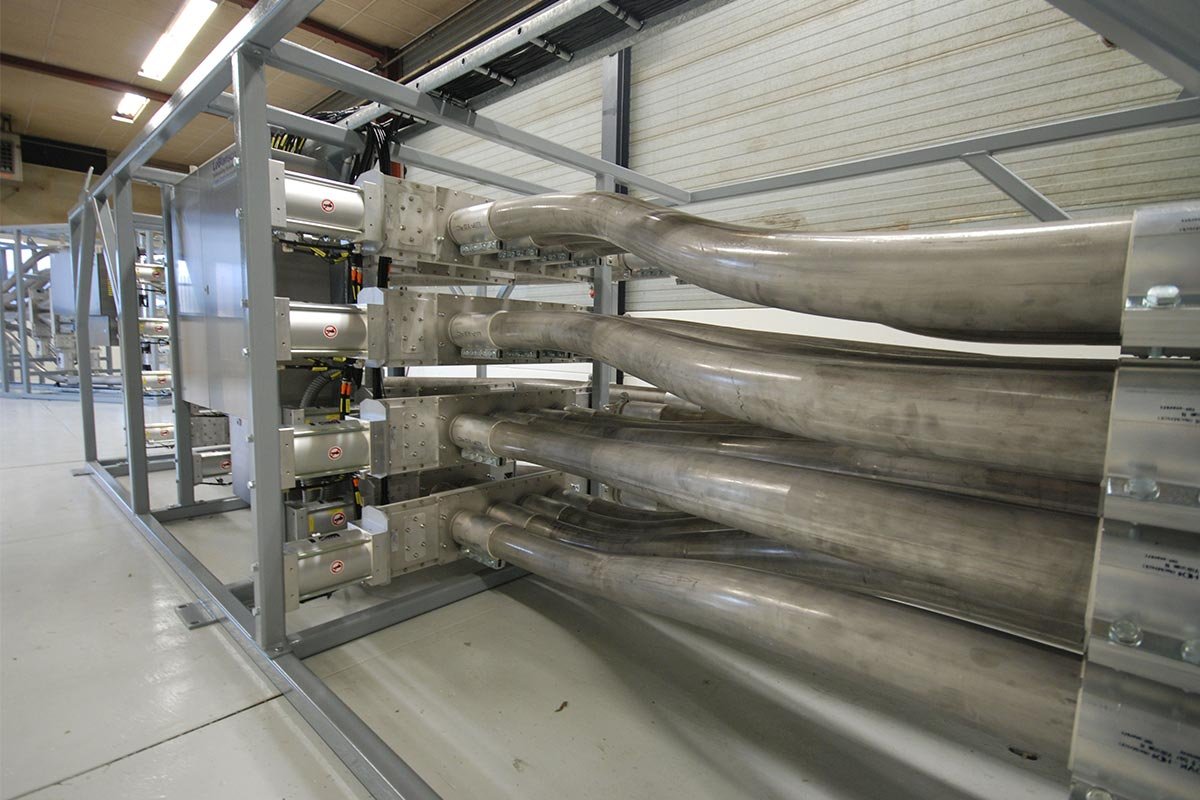

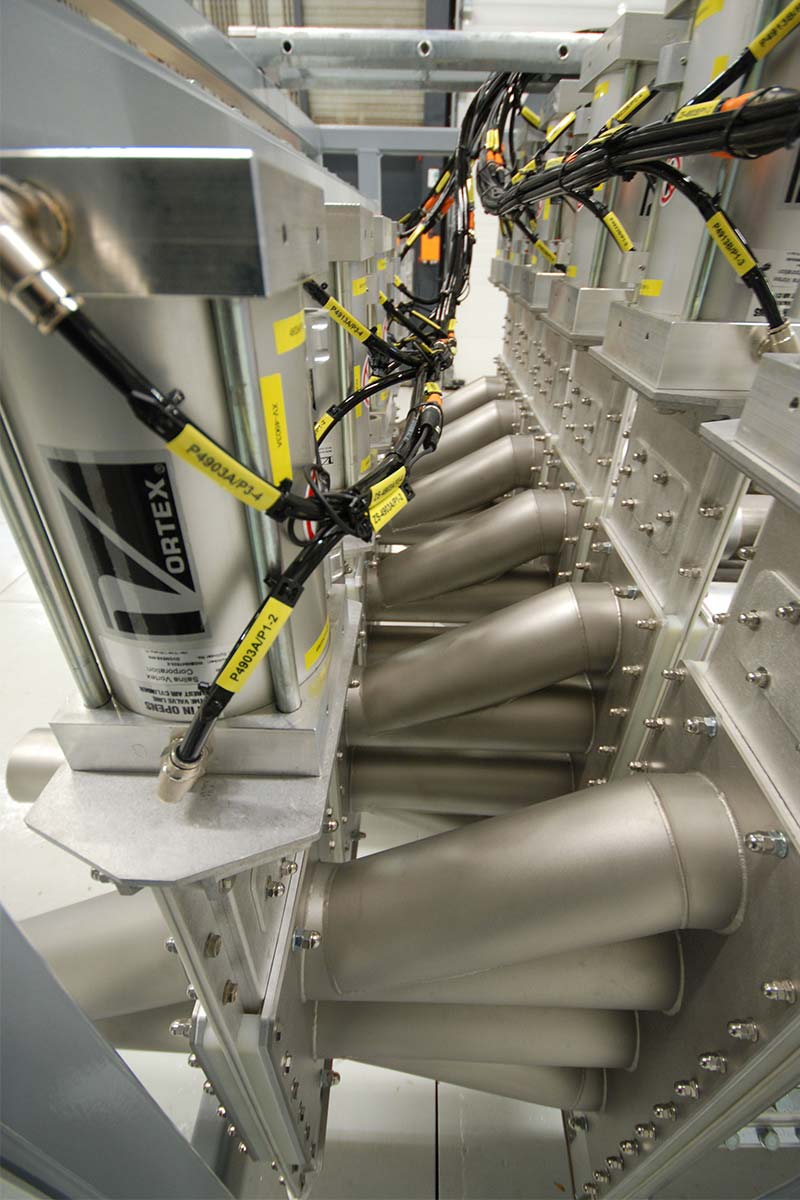

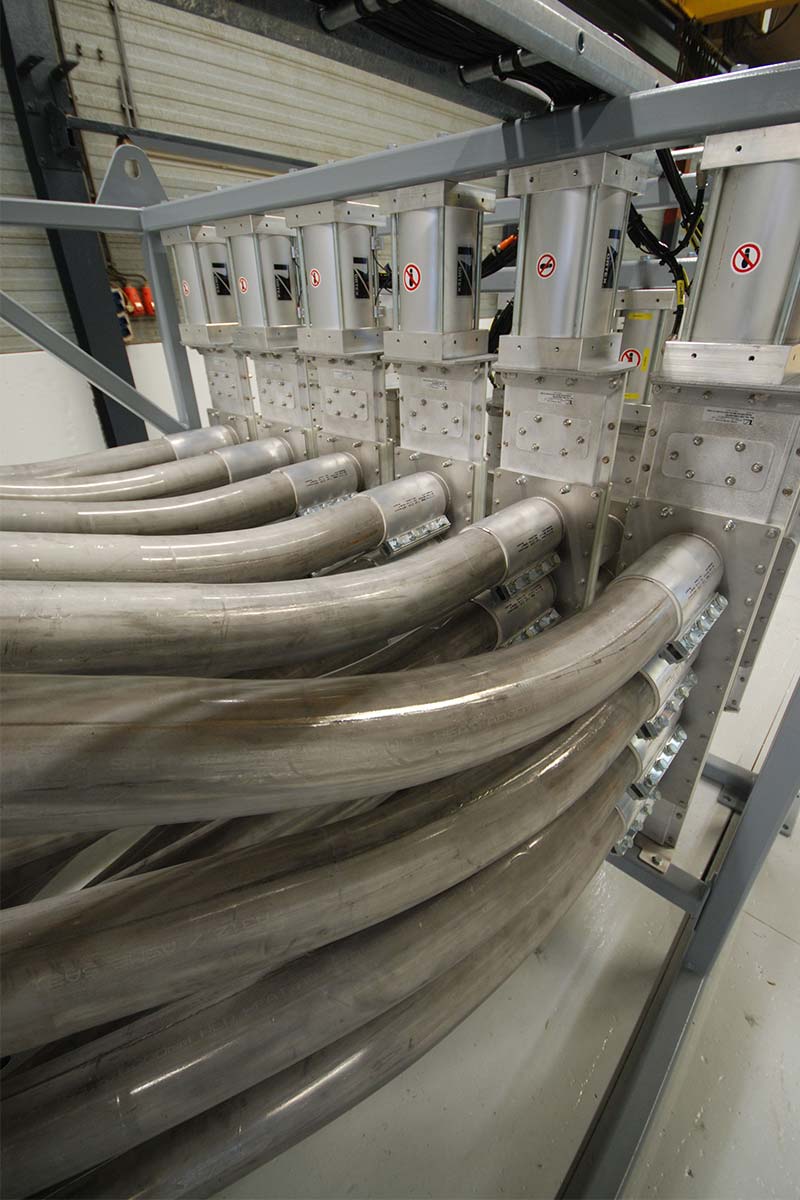

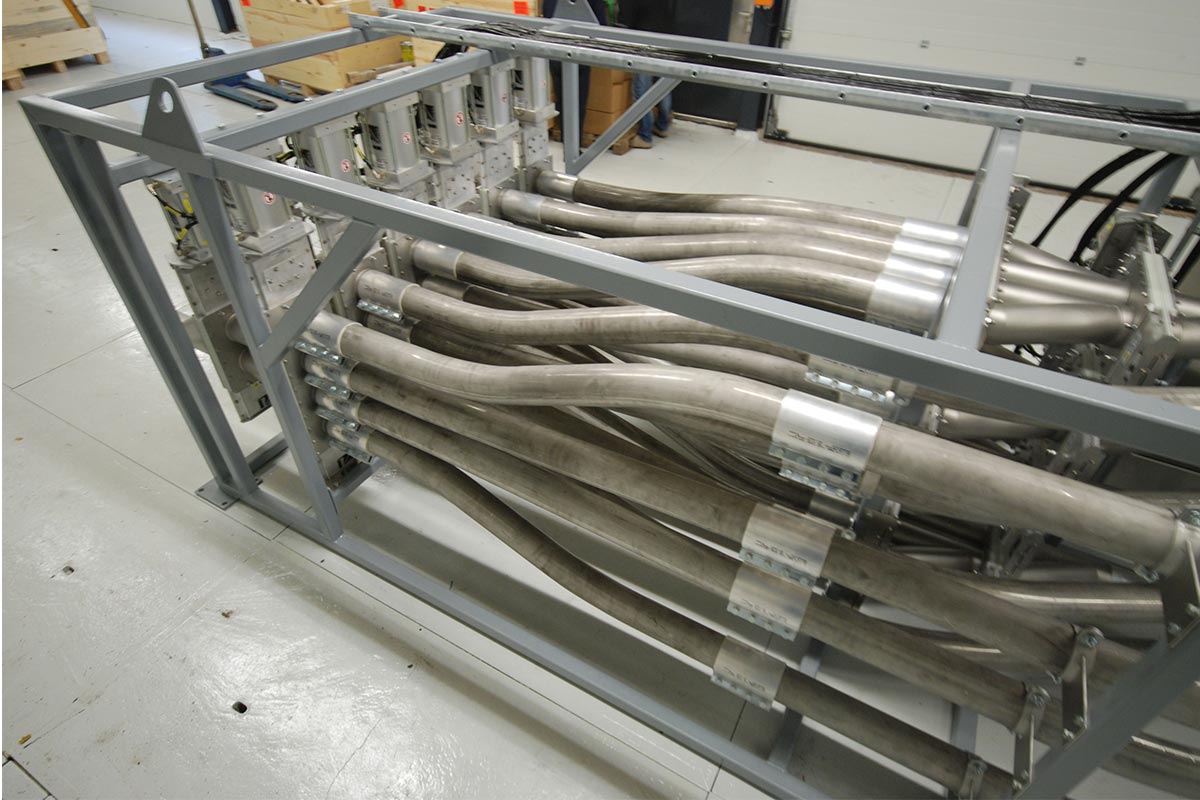

Multi-Port Diverter

The Vortex® Multi-Port Wye Line Diverter™ is specifically engineered to handle dry bulk solids in vacuum or dilute phase pneumatic conveying systems with pressures up to 15 psig (1 barg) depending on size.

• Can be shifted on flowing column of materials – also known as “shifting on the fly”. Note: Please consult an application engineer before doing do.
• Constructed from specialized metals and polymers for application-specific durability
• For pneumatic conveying applications, horizontal or vertical orientation
• Maintains convey line pressures in pneumatic conveying applications
• Unobstructed material flow
• Addresses material cross-contamination
• Optional PLC operation for “point and click”processing
• Closed system, for conveying efficiency and waste reduction
• Factory supplied pre-assembled and ready-to-install

Can be shifted on flowing column of materials – also known as “shifting on the fly”. Note: Please consult an application engineer before doing do.

Constructed from specialized metals and polymers for application-specific durability

For pneumatic conveying applications, horizontal or vertical orientation

Maintains convey line pressures in pneumatic conveying applications

Addresses material cross-contamination

Optional PLC operation for “point and click”processing

Closed system, for conveying efficiency and waste reduction

Factory supplied pre-assembled and ready-to-install
