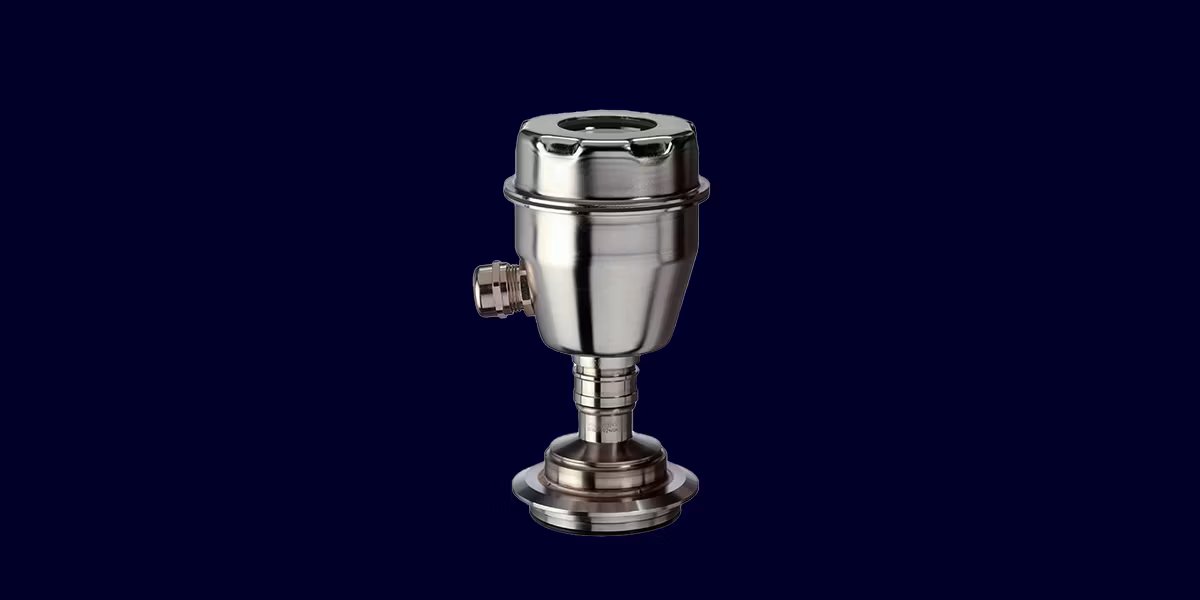

SITRANS P300 - Hygienic Pressure Transmitter

SITRANS P300 is a digital stainless steel pressure transmitter for food, pharmaceutical and biotech applications, with hygienic design and precise measurement.

Submersible hydrostatic level transmitter for reliable liquid level measurement in open tanks, channels, dams, wells, and other demanding applications.

Reliably measure hydrostatic pressure in basins, canals, and dams. This well probe features a durable stainless steel housing and ceramic membrane.

SITRANS P300 is a digital pressure transmitter for demanding hygienic applications. It delivers reliable measurements where strict installation requirements and efficient operation matter most. Available for gauge and absolute pressure, it combines a robust stainless-steel design with easy integration for food, beverage and pharmaceutical processes.

Meet EHEDG and 3A requirements with stainless-steel housing and flush-mounted hygienic connections to simplify cleaning and support compliant installation.

Built-in diagnostics and alarm functions help identify faults early, speed troubleshooting and provide trusted data for stable, efficient process control.

Configure quickly with local pushbuttons and connect easily to control systems via 4…20 mA with HART, PROFIBUS PA or FOUNDATION Fieldbus.

0–10 mbar (0–4 inchH2O) to 0–400 bar (0–5800 psi)

Up to 0.075% accuracy with long-term stability up to 0.25% over 5 years

4…20 mA with HART, PROFIBUS PA, FOUNDATION Fieldbus

Choose threaded or flush-mounted hygienic connections for dead-space-free installation and easy cleaning, including applications with viscous media.

Accuracy up to 0.075% and long-term stability up to 0.25% over 5 years support reliable measurement in a compact stainless-steel transmitter.

Select intrinsically safe versions for Zone 0 or Zone 1 to measure gases, vapors and liquids safely in regulated environments.

High accuracy, strong long-term stability and integrated diagnostics support reliable measurement data. This helps improve process transparency and supports stable, efficient control.

Depending on the selected version, SITRANS P300 is available for hygienic applications with EHEDG and 3A compliant process connections. Suitable configurations can also include FDA-compliant fill fluids. For hazardous areas, intrinsically safe versions are available, subject to the selected approval and device configuration.

Basic settings can be made locally using three pushbuttons on the device. Depending on the version, parameterization can also be performed via HART, PROFIBUS PA or FOUNDATION Fieldbus using compatible engineering tools.
