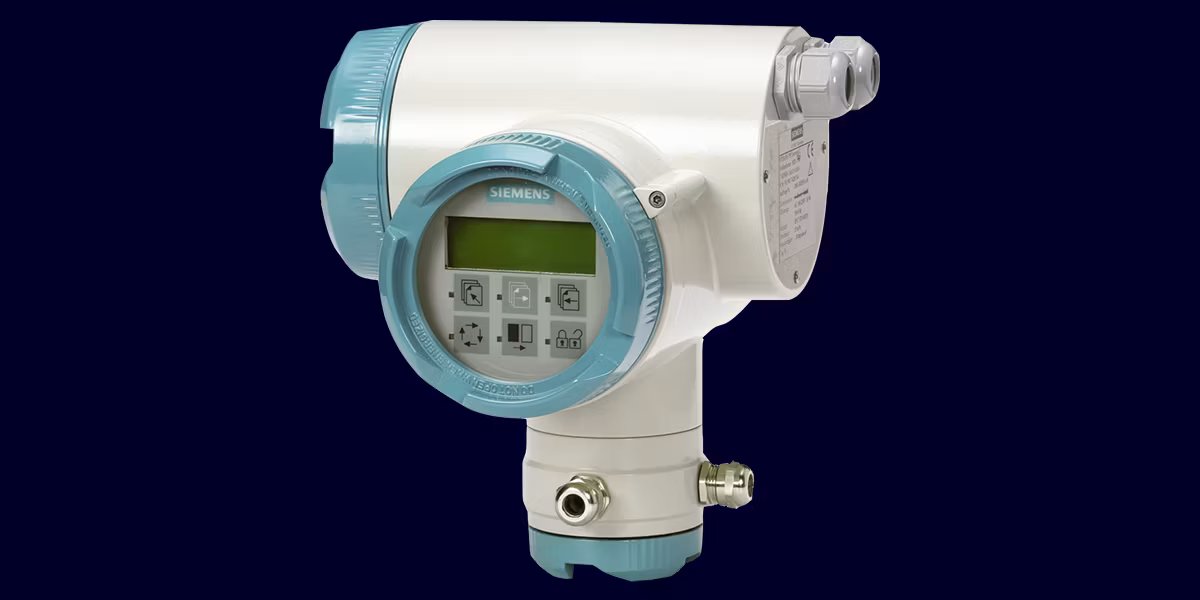

SITRANS FM MAG 6000 I / 6000 I Ex de

Robust electromagnetic flow transmitter with built-in batch control and dosing, ATEX certification for hazardous areas and SENSORPROM for easy replacement.

This rugged, fully welded electromagnetic flow sensor provides precise measurements for demanding chemical, mining, and process industries.

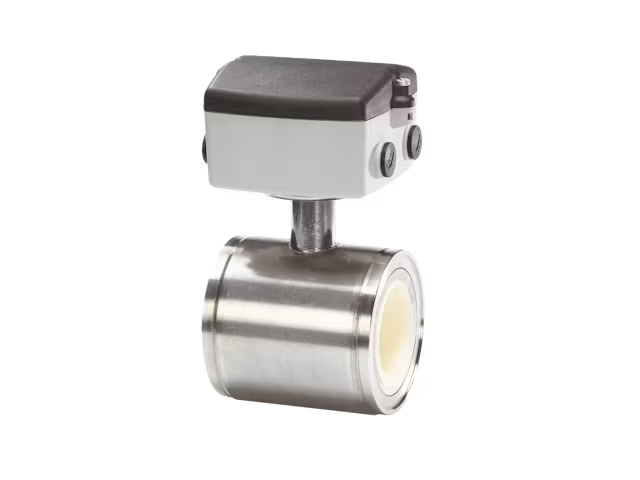

A compact, wafer-design electromagnetic flow sensor with a stainless steel housing and highly resistant liners for extreme process media and temperatures

High-accuracy electromagnetic flow transmitter with integrated batch control, plug-in communication modules, and flexible 19-inch rack or wall mounting options.

Built for the process industry, the MAG 6000 I delivers ±0.2% accuracy in a rugged die-cast aluminum IP67 housing that withstands the harshest environments. The Ex de version retains full input and output functionality in Zone 1 hazardous areas—a key advantage when explosion-proof operation must not compromise measurement capability. Plug-in communication modules, SENSORPROM auto-configuration and integrated batch control simplify deployment.

Deploy the Ex de version in Zone 1 explosive atmospheres with full input and output functionality retained. Global certifications (ATEX, IECEx, CSA) let you standardize on one platform across safe and hazardous zones.

Swap a transmitter in minutes. The SENSORPROM unit carries all calibration data and settings to the new device automatically—no manual reprogramming, no production delays, no specialist needed on site.

Connect directly to your control system from day one. Every unit includes analog, pulse/frequency and relay outputs—all galvanically isolated—so you can monitor flow, trigger alarms and control batches without extra hardware.

Background illumination with alphanumeric text, 3 x 20 characters

CE, C-tick, CSA; ATEX, IECEx (Zone 1/21, Class I Div. 1 & 2)

Handle batch filling and dosing directly from the transmitter—no separate batch controller needed. Set batch quantity, overrun compensation and time monitoring via the built-in menu, and trigger start, stop and hold through the digital input or keypad.

A four-level error system (Information, Warning, Permanent, Fatal) with error logging, empty-pipe detection and self-verification helps operators identify issues early. Conforms to NAMUR NE 21, NE 32, NE 43, NE 53 and NE 70.

Install directly on the sensor or remotely on a wall or pipe with cable lengths up to 500 m. The robust IP67/NEMA 4X aluminum enclosure with polyester powder coating suits both indoor and outdoor installations from –20 to +60 °C.

The transmitter works with Siemens MAG-series electromagnetic sensors SITRANS FM MAG 1100 and SITRANS FM MAG 3100. For the compact-mounted Ex version, only the MAG 3100 sensor in sizes DN 15 to DN 300 (½” to 12″) is supported.

Every sensor is shipped with a calibration certificate, and all calibration data—including calibration factor, correction factor and excitation frequency—are stored in the SENSORPROM memory unit. This means the flowmeter begins measuring accurately immediately after power-up, without manual intervention. The SITRANS FM MAG 6000 I also features built-in self-diagnostics, allowing operators to check device health on site without removing the meter from the process.

Yes. The SITRANS FM MAG 6000 I uses USM II (Universal Signal Module) plug-and-play communication modules that can be fitted at any time. Adding a module—for example, HART or PROFIBUS PA—does not disable the standard analog (4–20 mA), pulse/frequency or relay outputs. All outputs remain fully operational alongside the new bus communication.

The standard SITRANS FM MAG 6000 I accepts 18 to 90 V DC or 115 to 230 V AC (50/60 Hz), giving you flexibility across different plant infrastructures. The Ex version operates on 20 to 27 V DC or 115 to 230 V AC (50/60 Hz).
