SIRIUS 3RM1 Motor Starter - Compact Motor Control

SIRIUS 3RM1 motor starters deliver compact switching, protection for motors, fast wiring and space-saving design to simplify installation and maintenance.

The SIRIUS 3RM1 motor starter delivers full switching and protection for small motors up to 3 kW in a compact 22.5 mm housing. Available in direct-on-line and reversing configurations — including models with integrated safety functionality — it uses durable and energy-saving hybrid switching technology. The unit carries IEC, CCC and UL certifications for global deployment.

One device combines several functions, such as direct-on-line starting, reversing starting and overload protection. Plus, group configuration can achieve short-circuit protection up to 55 kA with just one motor starter protector.

Our hybrid switching technology uses low-wear semiconductors for switching the motor on and off. In the operating phase, energy-saving relay technology results in durable starters and a high level of energy efficiency.

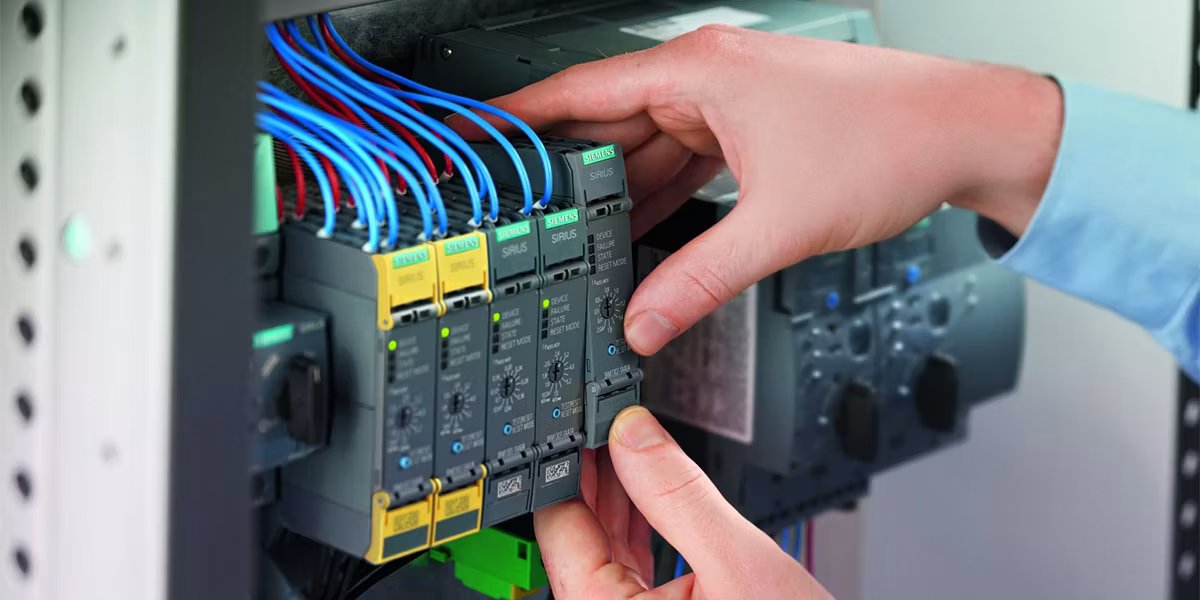

Handle infeed in the main circuit for several motor starters quickly and simply via a special infeed system. They are connected to one another by means of a three-phase busbar with a minimum of wiring.

Motor starters are available as direct starters or with a reversing starter function, all in a uniform housing design. The operation, configuration and width for both device types are identical.

SIRIUS 3RM1 motor starters are available in a safety version for locally limited safety applications. For safe shutdowns, they are available as direct and reversing starters and are certified in accordance with SIL 3/PL e Cat. 4.

Every SIRIUS 3RM1 motor starter is equipped with integrated electronic overload protection, so you no longer need a separate overload relay. That means lower wiring costs, shorter installation times and more room on the DIN rail.

Video | SIRIUS 3RM1 hybrid switching technology

Brochure | SIRIUS 3RM1 motor starter

Brochure | Powering SIRIUS hybrid industrial controls

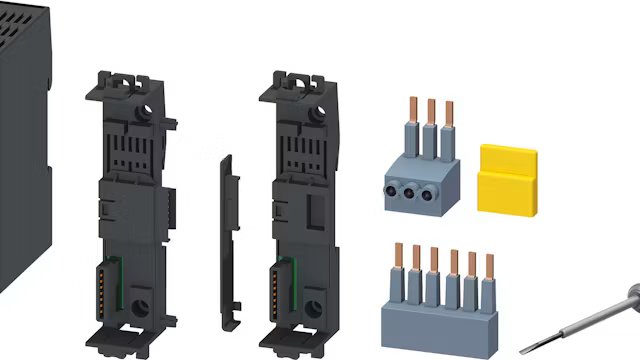

Order the SIRIUS 3RM1 starter kit at a special price. You get a reversing starter for the price of a direct starter and benefit from extensive free accessories.
