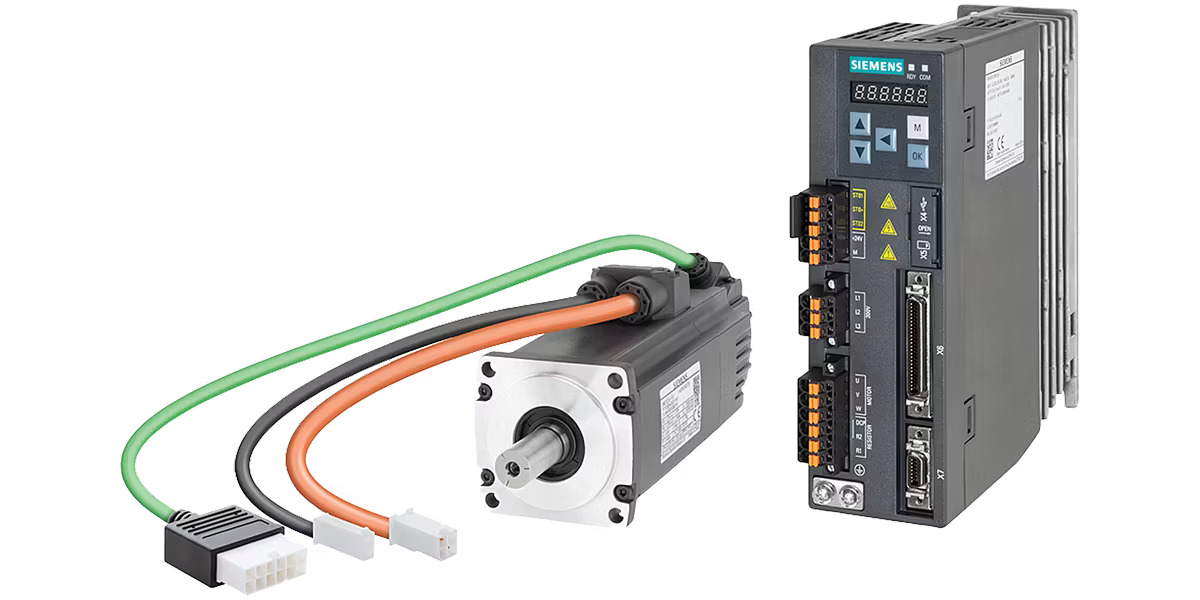

SINAMICS V90 servo drive

Optimize dynamic motion control with SINAMICS V90. This Siemens servo drive system handles a wide range of tasks, enabling precise processing.

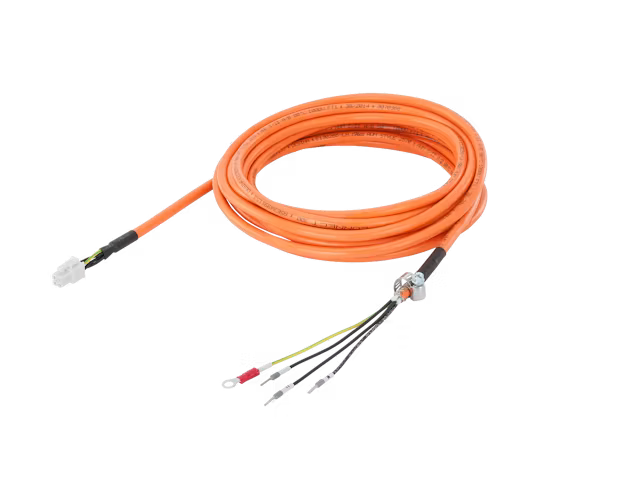

• Power cable according to length and cross-section (orange)
• Encoder cable according to length and encoder type (green)
• Brake cable for selected motor holding brake according to length (black)
• Setpoint signal for connection of the drive to the PLC (gray)
• Fast and simple commissioning with a perfectly attuned system (plug-and-play) and integration in the TIA Portal
• Efficiency due to increased dynamic response and cycle time
• Increased availability due to integrated diagnostics options with TIA Portal

A complete, optimized servo drive system for efficient motion control in standard applications. Covers a power range from 0.1kW to 7kW.

The SINAMICS S210 servo drive system delivers highly dynamic performance for precise motion control, featuring effortless configuration for fast commissioning.

With the compact SINAMICS V90 frequency converter, Siemens offers solutions for simple and more highly dynamic applications. The compact devices are suitable for industrial applications, for example in electronic assembly machines, the printing and packaging industries and for material handling machines.

The system features one-button tuning and real-time auto-tuning. The control loop parameters are optimized automatically. One-button tuning can be used during commissioning of the system.

The system enables sufficient encoder resolution (up to 21 bits) and high data transfer rates.

Rapid acceleration and braking, smooth operation help ensure high machine productivity and optimize your machines’ performance.

1/3AC 200V: 0.1–2kW; 3AC 200V: 1–2kW; 3AC 400V: 0.4–7kW

PN version: PROFINET (IO-Device, RT/IRT, cycle time from 2 ms onwards); PTI version: Pulse train input, Modbus/USS

300% rated current for 300 ms every 10 s

Brake Resistor integrated (except for 200V 100W)

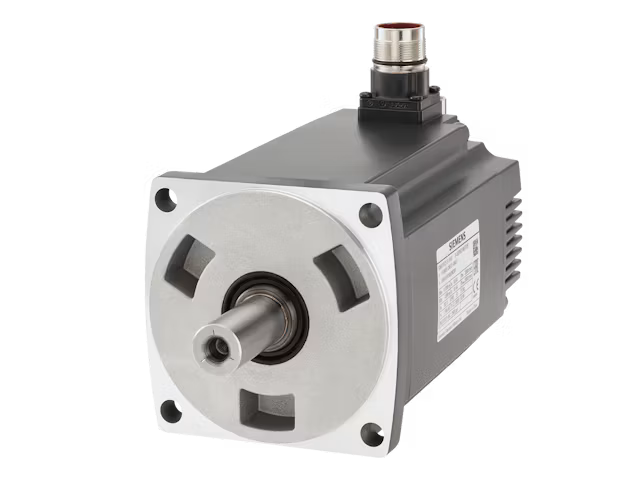

SIMOTICS S-1FL6 servo motors are permanent-magnet-excited synchronous motors designed for operation without external cooling. The heat is dissipated through the surface of the motor. The quick-release connectors facilitate fast and easy installation. The motors are capable of a threefold overload and can be combined with the SINAMICS V90 frequency converters to create an efficient servo system.

Select your MOTION-CONNECT 300 connection system:

Connectors can also be ordered individually.

Advanced controllers automate complete production plants as well as applications with extremely high demands on performance, flexibility and connectivity. In conjunction with the SIMATIC S7-1500 T-CPU and SIMATIC S7-1200, the SINAMICS V90 servo drive system with PROFINET provides an optimally harmonized motion control solution in the TIA Portal.

TRIMA-Triebeser Maschinenbau GmbH, a leader in bakery machines and lines in Zeulenroda-Triebes, Germany, leveraged this flexible drive system to optimize dough processing. They achieved:
