SINAMICS S210 servo drive

The SINAMICS S210 servo drive system offers highly dynamic solutions (50W-7kW) & effortless configuration. Optimize your motion control with Siemens

The servo drive system that can be simply engineered for machinery construction

• SIEMENS Product Configurator
• EPD | SIMOTICS S-1FK2
• SINAMICS S210
• SIMOTICS S-1FK2/1FT2
• SIMOTICS S-1FS2

Experience the SINAMICS S210 servo drive system – digitally, interactively, and in motion.

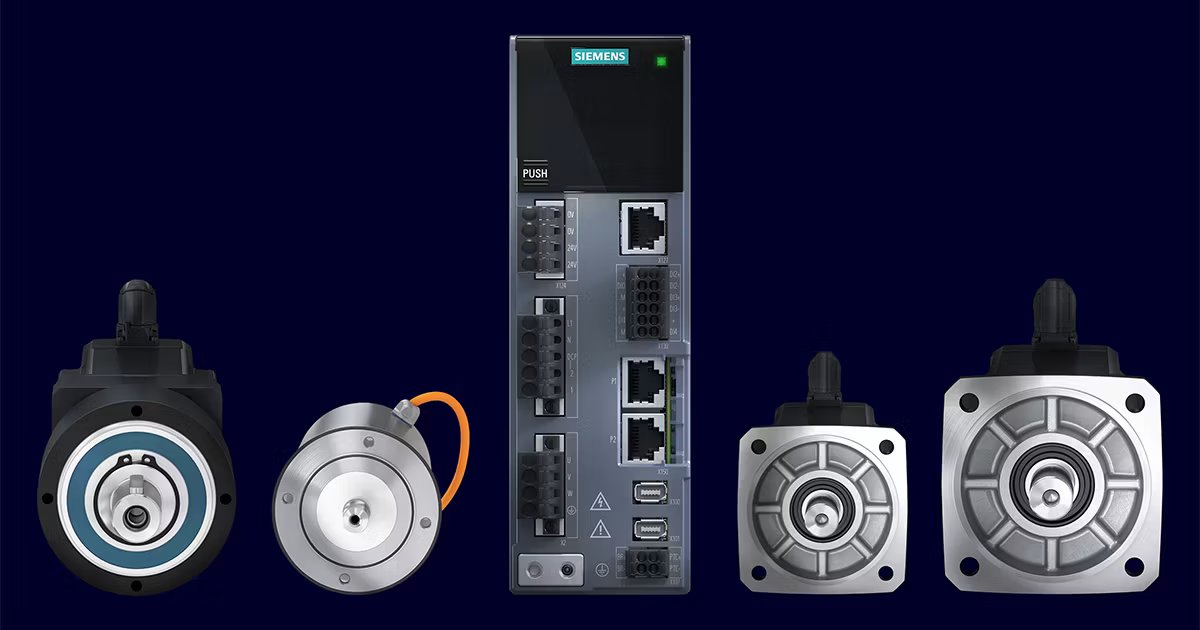

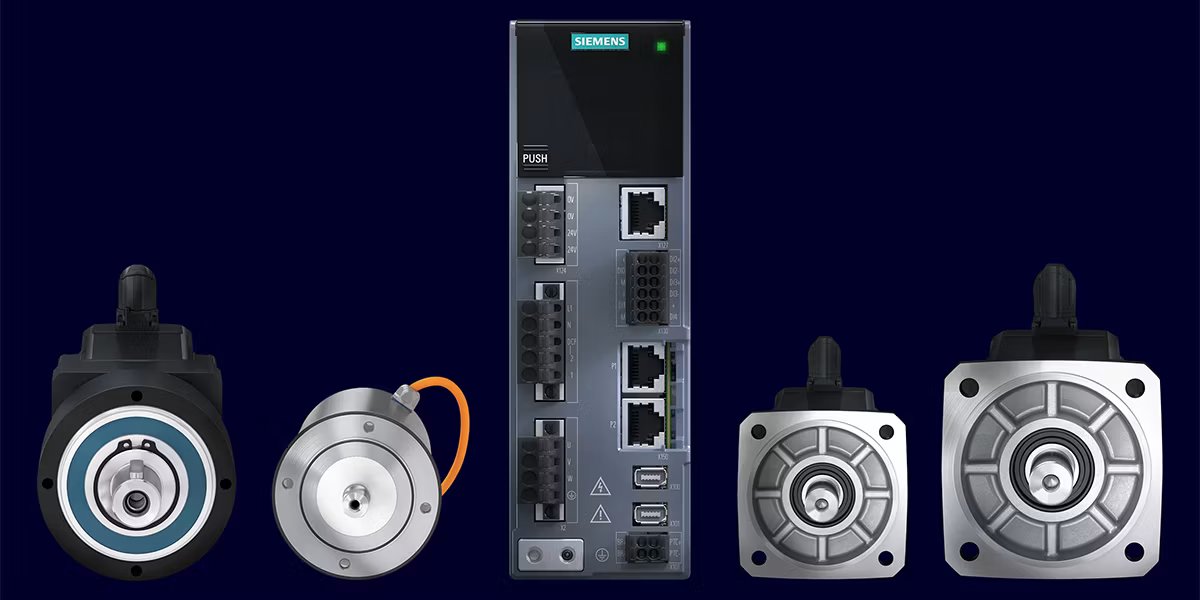

The SINAMICS S210 is a versatile servo drive system designed for complex and dynamic motion control applications in the 0.1 kW to 7 kW power range, from packaging, handling and digital printing to wood, plastics and ceramics processing. Consisting of a servo drive and servomotor, it delivers maximum precision, performance and safety with streamlined engineering, maintenance and commissioning.

SINAMICS S210 moves light, average and large loads dynamically. Connect to a control system with its PROFINET IRT communications interface or to a third-party control system via EtherNet/IP.

SINAMICS S210 quickly speeds up and slows down, allowing for short cycle times and accuracy with complex motion control. High-resolution encoders enable fast sensing with an additional second encoder for a direct measuring system.

Certified to the highest standard — SIL3 (EN 61508) and PL e (EN ISO 13849-1), SINAMICS S210 offers secure factory default settings, individual user management and secure communication between the servo drive and the TIA Portal.

1 AC 200 – 240 V / 0.1 kW – 0.75 kW

3 AC 200 – 240 V / 0.24 kW – 4.2 kW

1 AC 200 – 240 V / 0.05 kW – 0.75 kW

3 AC 200 – 240 V / 0.05 kW – 3.9 kW

3 AC 200 – 240 V / 0.45 kW – 1.7 kW

1 AC 200 – 240 V / 0.16 Nm – 3.6 Nm

PROFINET IRT, PROFIsafe, PROFIenergy, EtherNet/IP (from V6.3)

STO, SBC, SS1-t (time controlled), SS1*, SS2*, SOS*, SLS*, SSM*, SDI*, SLA*, SBT* (* can be optionally activated using a license)

One-cable connection technology (OCC) with SPEED-CONNECT quick-release lock and rotatable, compact connector

Typical control and motion control functionality

SIMATIC S7-1200 G2 / SIMATIC S7-1500 T-CPU / SIMOTION

SINAMICS S210 servo drive, which covers a power range of 0.1–7 kW is designed for discontinuous applications in machinery construction that require the highest level of performance, precise positioning and motion control.

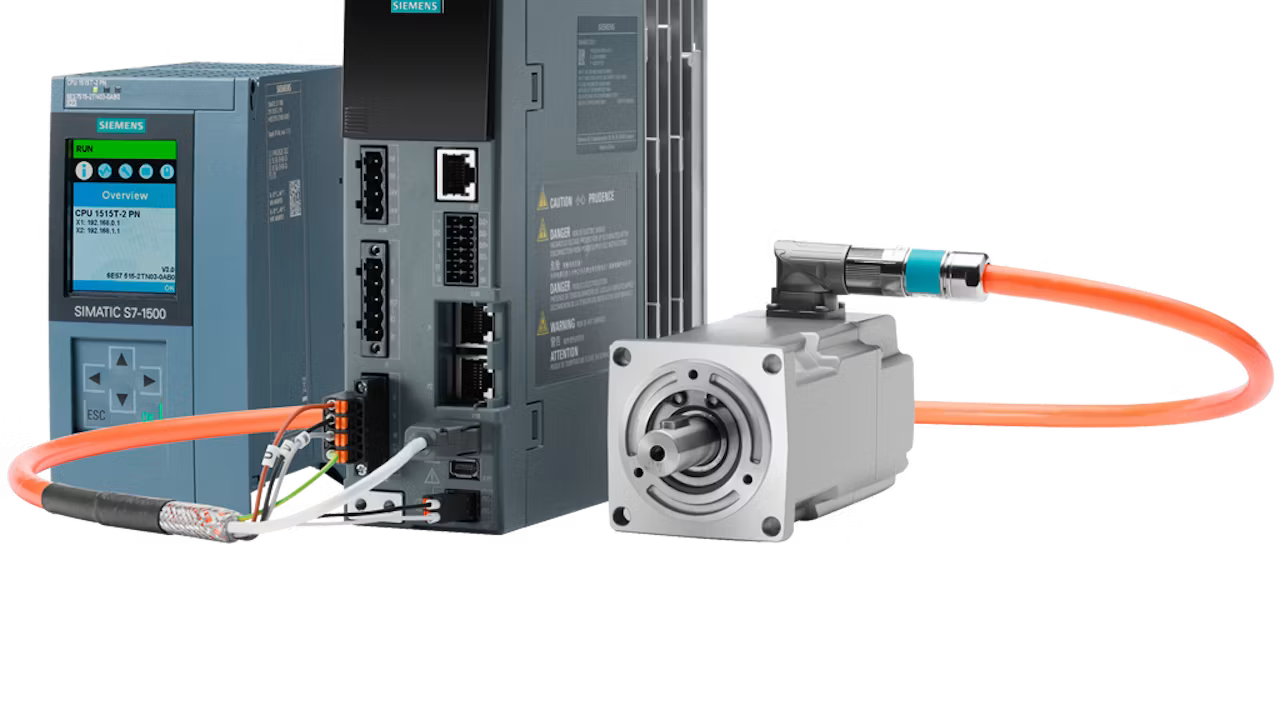

A SIMOTICS servomotor from the S-1FK2, S-1FT2 or S-1FS2 product series works with the servo drive to provide short control and positioning times, fast and precise control response to disturbances and stable closed-control.

Add a Digital Twin of the drive train to your machine simulation using DriveSim Designer or DriveSim Engineer to speed up your design and engineering phase, while improving machine quality and robustness.
