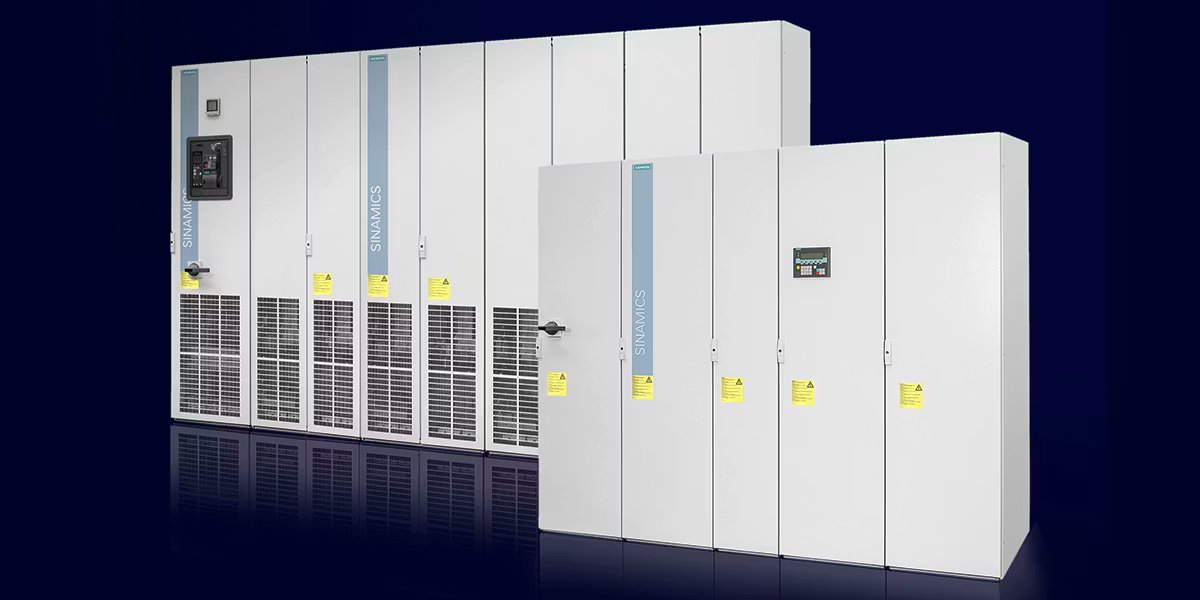

SINAMICS S120 Cabinet Modules

SINAMICS S120 Cabinet Modules offer a modular, scalable drive system with air or liquid cooling, delivering high operational reliability and easy configuration.

SINAMICS S120 Cabinet Modules provide a modular and powerful drive solution that adapts to a wide range of applications. Their preconfigured transport units simplify installation and integration, while efficient cooling concepts reduce energy use and operating costs. Built for long-term reliability, the system provides stable performance even in demanding environments.

Combine modules freely to meet precise application needs, adapt quickly and scale easily. Preconfigured transport units reduce installation time, while the modular design enables smooth integration into any plant or system.

Use efficient air or liquid-cooled modules to lower energy consumption and minimize CO₂ emissions. Easy-to-access components and shared DC link energy exchange simplify maintenance and help lower overall lifecycle costs.

Rely on robust construction and proven mechanical stability designed for harsh environments. Thorough testing and integrated EMC measures provide consistent performance and deliver a durable, highly available drive system.

Uniform connection points enable fast and consistent engineering. Modules integrate seamlessly with the SIZER engineering tool for simple selection and planning. Comprehensive documentation supports the entire lifecycle.

Powerful air-cooled units up to 4560 kW and liquid-cooled units up to 5700 kW deliver high power density, excellent adaptability and strong efficiency — ideal for applications exposed to demanding industrial environments.

New liquid-cooled compact modules reduce installation footprint and provide flexible, space-saving solutions for main and auxiliary drives. Their robust design supports use in marine, offshore and other restricted environments.

The modules are delivered as preconfigured transport units with standardized interfaces, making installation quick and consistent. Clear documentation and tool support (e.g., SIZER) streamline commissioning and reduce engineering time.

They are available with air-cooled and liquid-cooled designs. Air-cooled modules offer robust performance in conventional industrial environments, while liquid-cooled units enable high power density and compact installation in thermally demanding applications.

Yes. The modular design allows flexible configuration of line, motor and auxiliary modules. Options can be combined to meet power, space and cooling requirements, enabling tailored drive solutions for both standard and highly specialized applications.
