SINAMICS G120C

Discover Siemens SINAMICS G120C: a compact frequency converter with integrated safety function & wide range of functions for diverse applications.

The SINAMICS G120C is a compact and versatile frequency converter for diverse applications. With its user-friendly design, it offers optimum functionality in a compact package.

The integrated Safe Torque Off safety function of the SINAMICS G120C saves space and costs by allowing you to omit external components. High torques at low frequency setpoints are possible thanks to energy-efficient, sensorless vector control. Enjoy an intuitive series commissioning and cloning function using a SINAMICS G120 Smart Access Module, BOP-2, IOP-2, or SD card.

With seven frame sizes, it covers a power range from 0.55 to 132 kW.

The compact design is constructed for power ratings up to 132 kW. All frame sizes built in a side-by-side design without power reduction or current derating.

All standard bus systems like PROFINET, EtherNet/IP, PROFIBUS and USS/ Modbus RTU are supported.

Full integration of the drives into the TIA Portal system diagnostics and the use of the TIA Portal library concept guarantee simple reusability of the converters, including their parameters and hardware components.

Wirelessly connect your mobile devices like smartphones, tables, and laptops with the SINAMICS Smart Access Module via WiFi to the SINAMICS G120C converter series to enable wireless commissioning, diagnostics, and service.

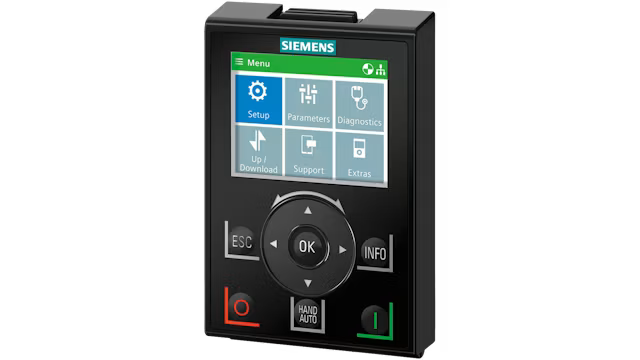

The flat IOP-2 Intelligent Operator Panel allows fast local setup, fault diagnostics, and intuitive operation of SINAMICS G frequency converter series and simplifies the adjustment of settings during operation.

The menu-based operation and 2-line display of the BOP-2 Basic Operator Panel facilitate local commissioning of the SINAMICS G120 converter series with simultaneous display of the parameter and parameter value.
