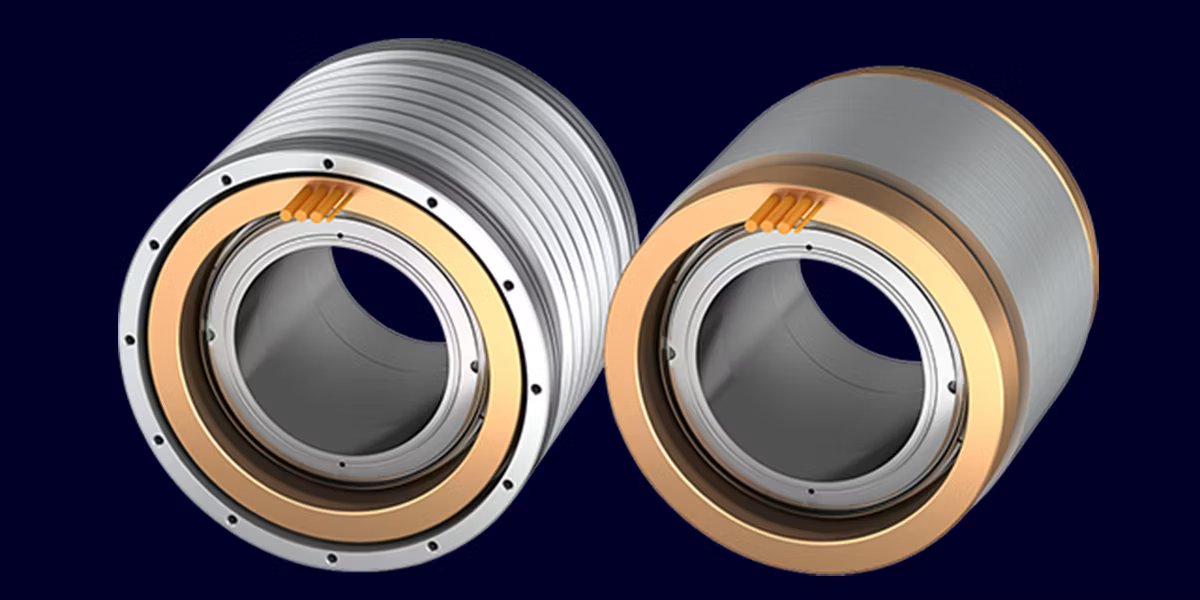

SIMOTICS M 1FE built-in motors

SIMOTICS M 1FE built-in motors provide high torque, precision, and fast acceleration times for demanding machine tool spindle applications.

SINAMICS S120 offers high performance, productivity, and flexibility. Its modular design allows you to quickly configure drive systems that are suitable for almost any application.

With SINAMICS S220, experience a new system architecture today that unlocks tomorrow’s full potential—your advantage starts now. Powerful. Precise. Progressive

Specially designed Motion-Connect technology and measurement systems for your motion control applications. Simplifies project planning and commissioning.

SIMOTICS M-1FE built-in motors are main spindle motors for modern machine tools. Available in synchronous and asynchronous designs, they deliver high accuracy in speed, torque, and positioning. With short rise times, they reliably handle extreme load cycles and enable high machining quality and smooth operation in demanding applications.

The mechanical motor power is transferred directly to the spindle without any mechanical transmission components. This direct-drive approach results in higher precision and accuracy, as well as less mechanical wear and maintenance.

Boost machine responsiveness, throughput, and cycle times with rapid acceleration and braking capabilities, improving both speed and efficiency.

Achieve greater rigidity with large internal rotor bores and a substantial shaft diameter. Minimize vibrations and deflection for stable, precise machining, helping to maintain consistent performance and extend equipment lifespan.

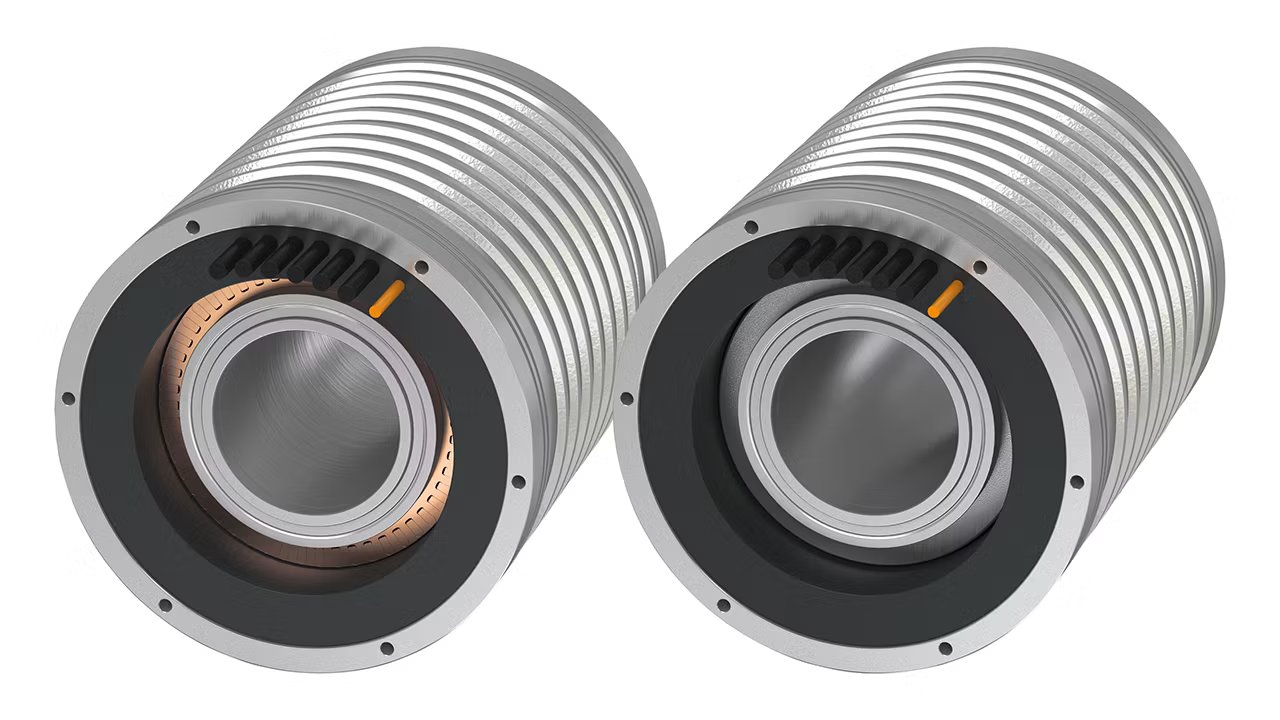

SIMOTICS M-1FE Synchronous variant (high speed)

SIMOTICS M-1FE1 / M-1FE2 Synchronous variant (high torque)

SIMOTICS M-1FE2 Asynchronous variant (high torque)

Use SIMOTICS M-1FE2 asynchronous built-in motors for direct-drive spindles in turning, milling, grinding, and multitasking. Achieve improved torque density, higher speeds, a wider constant-power range, and increased overload capacity.

Deploy SIMOTICS M-1FE1 synchronous built-in motors for machine tools to enable highly dynamic main spindle operation and direct power transfer. Achieve high-quality machining, fast ramp-up, and precise accuracy.

Choose between asynchronous and synchronous water-cooled models. Select high-torque or high-speed options to meet your various speed or torque requirements.

SIMOTICS M-1FE motors are built-in synchronous motors optimized for maximum dynamics and precision, while SIMOTICS M-FE2 motors are asynchronous and offer increased torque density, higher speeds, and overload capability.

All SIMOTICS M-1FE built-in motors are equipped with efficient water cooling for high continuous performance.

Choose the High Speed variant when maximum spindle speed, short ramp-up times, and excellent surface quality are required. It is ideally suited for high-speed milling, grinding, and finishing operations where productivity and reduced cycle times are critical. Select the High Torque variant when high cutting forces, stable torque output, and reliable performance under demanding load cycles are required. Typical applications include turning, heavy milling, and multitasking machine tools.
