SIMATIC ET 200eco PN - PROFINET Block I/O

The rugged SIMATIC ET 200eco PN block I/O for cabinet-free installation. Its metal housing provides IP69K protection and is suitable for use in hazardous environments.

Using the SIMATIC S7-1500 controller provides you with top performance and built-in future-proofing.

Maximize plant availability with SIMATIC S7-1500 R/H CPUs. A synchronized backup CPU takes over seamlessly to prevent data loss and ensure continuous operation.

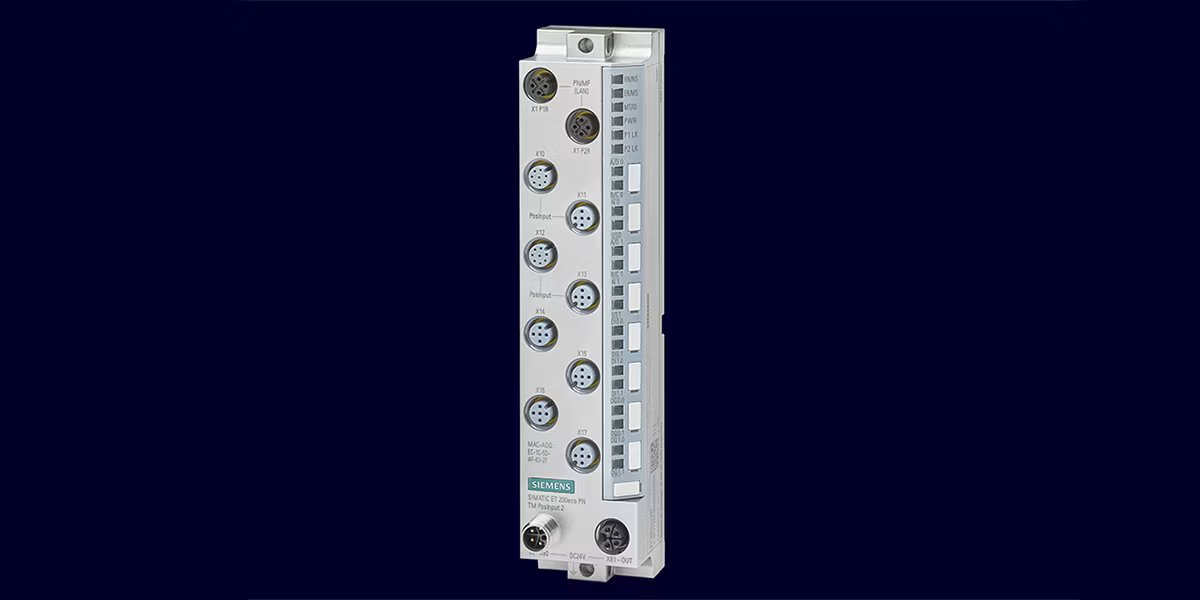

SIMATIC ET 200eco PN is a compact block I/O with IP65/IP67/IP69K protection for cabinet-free installation directly on the machine.

Its fully sealed metal housing ensures reliable operation in harsh conditions ranging from -40 °C to +60 °C. It is highly resistant to vibration, dust, oil, and moisture, making it suitable for outdoor use. With ATEX certification, it can also be used in hazardous areas (Zones 2 and 22).

The rugged metal housing and high protection ratings up to IP69K provide long-lasting durability and ensure reliable operation even under demanding environmental conditions.

Thanks to its rugged design, the system is suitable for outdoor use and can operate reliably even in exposed environments where it is subject to varying weather conditions.

Approved for use in explosive environments up to Zone 2 / Zone 22 to ensure safe and reliable operation even in hazardous areas.

DI, DQ, DIQ, AI, AIQ, TM, F-IO, IO-Link

Integrated System and Module Diagnostics

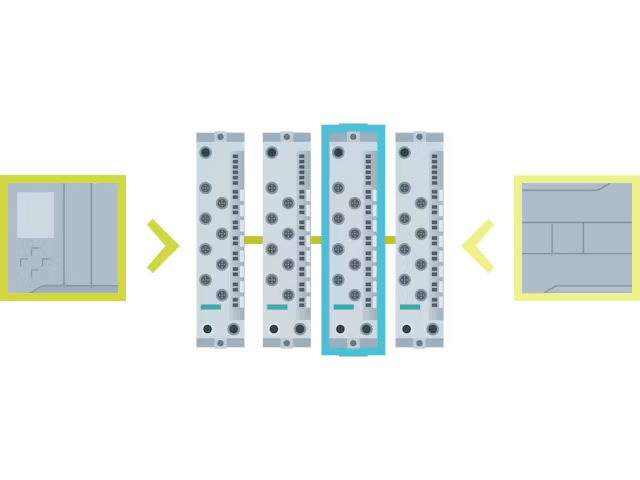

Use the Shared Device function with SIMATIC ET 200eco PN to allow multiple controllers to access the same I/O modules. This increases flexibility in machine designs, enables coordinated control tasks, and simplifies the distribution of responsibilities among automation systems. It helps optimize resources and ensure efficient, consistent operation across connected controllers.

Harness the communication capabilities of the SIMATIC ET 200eco PN. Communicate efficiently with your field devices and access additional data via IO-Link. Communicate across different protocols as needed. With MultiFieldbus, you can select the optimal protocol for any application, including PROFINET, EtherNet/IP, and Modbus TCP.

SIMATIC ET 200eco PN offers safety modules up to SIL3/PL e. For standard modules, the system supports the safe shutdown of outputs within a power supply line. This increases flexibility when integrating safety applications, and diagnostics remain available even during a safe shutdown.

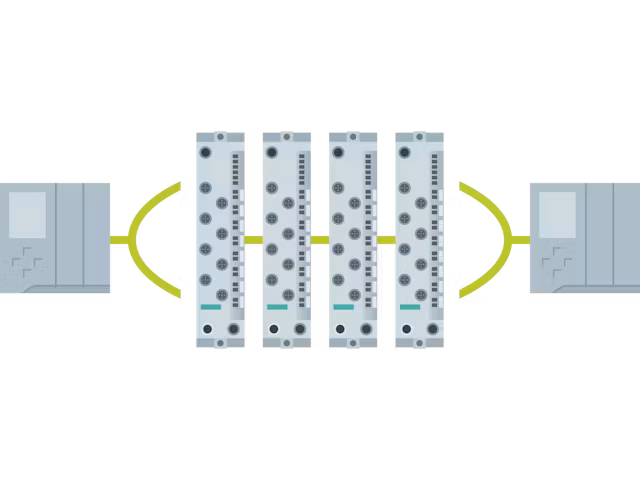

Ensure high availability in demanding automation environments with S2 redundancy. With two PROFINET interfaces, the system can maintain communication even if one controller or connection fails. This increases operational reliability and helps keep your machine or plant running without interruption. The powerful M12-L connection delivers higher line current and optimizes the power supply.

The connectors and cables available for the ET 200eco PN distributed I/O system can be found here

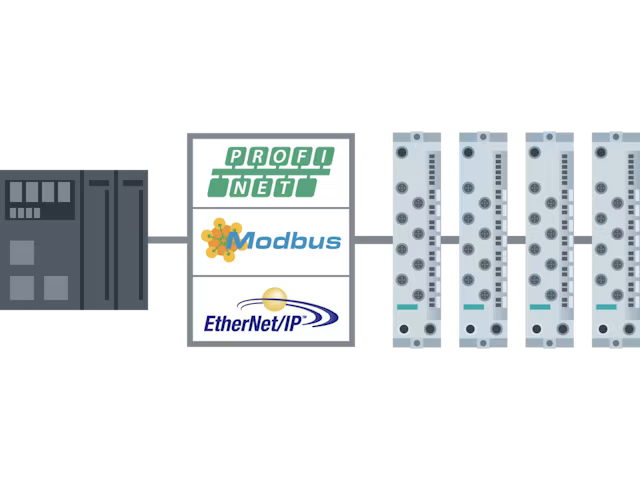

SIMATIC MultiFieldbus enables flexible communication across PROFINET, EtherNet/IP, and Modbus TCP. This allows you to meet changing machine requirements without having to replace the I/O system when customer protocols change.

IO-Link is a standardized digital point-to-point system that connects sensors and actuators to automation systems via IO-Link masters. It uses simple, unshielded cables for easy installation and reliable signal quality. IO-Link provides device data, parameter settings, and diagnostics to simplify commissioning and maintenance.

A safe shutdown is the process by which safety modules or relays cut off the power supply to standard modules, bringing the system into a safe state and preventing any unintended movements or operations. This function is available for various SIMATIC ET 200 standard modules. Additional information and a list of all compatible modules can be found here. .
