Recover aluminum, copper, brass, and more with Bunting’s concentric and eccentric eddy current separators—high-intensity, low-maintenance systems engineered for recycling, plastics, and material recovery facilities (MRFs).

• Magnetic Separation
• Eddy Current Separators
• Short centered conveyor presents material to a high‑speed magnetic rotor housed inside a non‑metallic shell.
• Rapid polarity reversal induces eddy currents in conductive particles (Fleming’s left‑hand rule).
• Magnetic repulsion throws non‑ferrous metals, while inert material falls naturally.
• Adjustable splitter isolates the two fractions for clean recovery.
• Throughput
• In concentric designs , the rotor sits centrally inside the pulley, delivering a symmetrical magnetic field. This setup offers balanced repulsion and is ideal for coarser non-ferrous metals in steady feed conditions.
• In eccentric designs , the rotor is offset within the pulley shell, focusing the magnetic field at a single discharge point. This improves the separation of small, lightweight, or low-conductivity particles, especially when targeting fines under 10 mm.
• Sequenced PLC control cabinet
• Ceramic coating on carbon‑fibre rotor shell
• Custom chassis with primary ferrous separation (drum, pulley or overband magnet)
• Rotary or static belt brushes for sticky/wet feed
• Laboratory‑scale units available for trials in Bunting’s UK Recycling Test Facility
• High‑Intensity Eccentric (HIFE) – for small non‑ferrous metals down to 1 mm
• High‑Intensity Eccentric (HIE) – for small non‑ferrous metals down to 3 mm
• High‑Intensity Concentric (HIC) – for general use, non‑ferrous metals above 10 mm (16/64″)
• Eco Concentric ECS (ECO) – for general household recycling, non‑ferrous metals above 25 mm (1″)
• Recover non‑ferrous metals from shredded cars, aluminium cans, WEEE, etc.
• Remove non‑ferrous contaminants from cullet, plastics, woodchip and other waste materials Applications span metal recycling , glass re‑melting , plastics reuse , wood processing , and waste-to-energy operations .

For more than 30 years Bunting® has engineered high‑performance Eddy Current Separators (ECS) that repel non‑ferrous metals — such as aluminum, copper and zinc — from non‑conductive material streams. The result: higher product purity, higher metal yield and lower operating costs. Applications : Plastic Recycling, Auto Shredder Residue (ASR), Electron Waste (E-Waste Recycling, Municipal Solid Waste (MSW) & Aluminum Can Recovery, Glass Recycling, Wood and Biomass Recycling

Short centered conveyor presents material to a high‑speed magnetic rotor housed inside a non‑metallic shell.

Rapid polarity reversal induces eddy currents in conductive particles (Fleming’s left‑hand rule).

Magnetic repulsion throws non‑ferrous metals, while inert material falls naturally.

Adjustable splitter isolates the two fractions for clean recovery.

Super Fines ≥ 1mm (e‑scrap, shredded battery waste)

Fines ≥ 3mm (e-scrap, granulated plastic)

Mixed recyclables, wood, glass ≥ 10 mm

Quick‑Change Belt The HIE, HIC and ECO models feature an under‑frame cantilever jacking system. One technician can swap the conveyor belt without removing the rotor, minimizing downtime and safeguarding rotor alignment.

Bunting manufactures both eccentric and concentric rotor eddy current separators, each designed for specific material characteristics and recovery goals. The key distinction lies in the position of the magnetic rotor within the head pulley and how the magnetic field interacts with the conveyed material.

In concentric designs , the rotor sits centrally inside the pulley, delivering a symmetrical magnetic field. This setup offers balanced repulsion and is ideal for coarser non-ferrous metals in steady feed conditions.

In eccentric designs , the rotor is offset within the pulley shell, focusing the magnetic field at a single discharge point. This improves the separation of small, lightweight, or low-conductivity particles, especially when targeting fines under 10 mm.

Choosing between the two depends on your material’s particle size, conductivity, throughput, and purity requirements.

(Metric range followed by rounded imperial range)

Ceramic coating on carbon‑fibre rotor shell

Custom chassis with primary ferrous separation (drum, pulley or overband magnet)

Rotary or static belt brushes for sticky/wet feed

Laboratory‑scale units available for trials in Bunting’s UK Recycling Test Facility

The Eddy Current Separator (ECS) uses a high‑speed magnetic rotor to generate repulsive magnetic forces that separate non‑ferrous metals (like aluminium, copper, zinc) from non‑conductive materials in recycling streams. It’s commonly integrated with a drum magnet that first removes ferrous metals.

Bunting offers four ECS models tailored for different particle sizes and applications:

High‑Intensity Eccentric (HIE) – for small non‑ferrous metals down to 3 mm

High‑Intensity Concentric (HIC) – for general use, non‑ferrous metals above 10 mm (16/64″)

Eco Concentric ECS (ECO) – for general household recycling, non‑ferrous metals above 25 mm (1″)

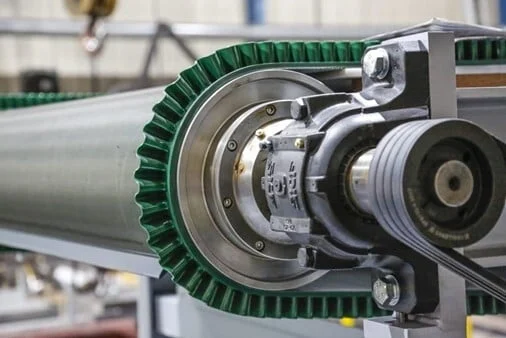

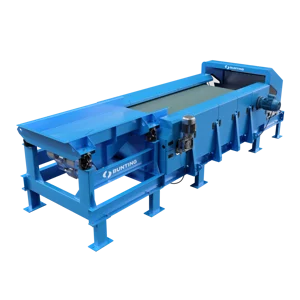

An Eddy Current Separator consists of a short belt conveyor with its drive located at the return end, and a high-speed magnetic rotor system installed at the discharge end. The magnetic rotor, housed within a separately rotating non-metallic drum, operates at speeds of up to 3,000 revolutions per minute, while the outer drum cover rotates at the same speed as the Eddy Current Separator’s belt conveyor.

As the rotor spins at these high speeds, it produces a changing magnetic field. The strength of this field depends on the rotor’s speed and the number of magnetic poles.

When a conductive metal piece passes over the rotor and through this changing magnetic field, an eddy current is induced within it. These eddy currents, in turn, create their own magnetic fields that oppose the original magnetic field (Lenz’s Law). This interaction generates a repulsive force that pushes the object away from the magnetic field (Fleming’s Left-Hand Rule).

Inert, non-conductive materials (such as glass, plastic, etc.) simply fall off the rotor due to gravity—their distance thrown is determined solely by the belt speed. In contrast, conductive metal pieces are repelled and thrown farther from the rotor.

A splitter plate is positioned between these two material streams to enable separation. By adjusting the belt speed, rotor speed, and splitter plate position, the Eddy Current Separator can be configured to suit the specific characteristics of the customer’s material.

The HIE, HIC. and R-Type model feature a cantilever jacking system beneath the hinge frame, allowing one person to lift and hold the conveyor from one side. After drive belt removal, the main belt can be easily and quickly replaced without removing the rotor—minimizing downtime and simplifying maintenance.

Recover non‑ferrous metals from shredded cars, aluminium cans, WEEE, etc.
